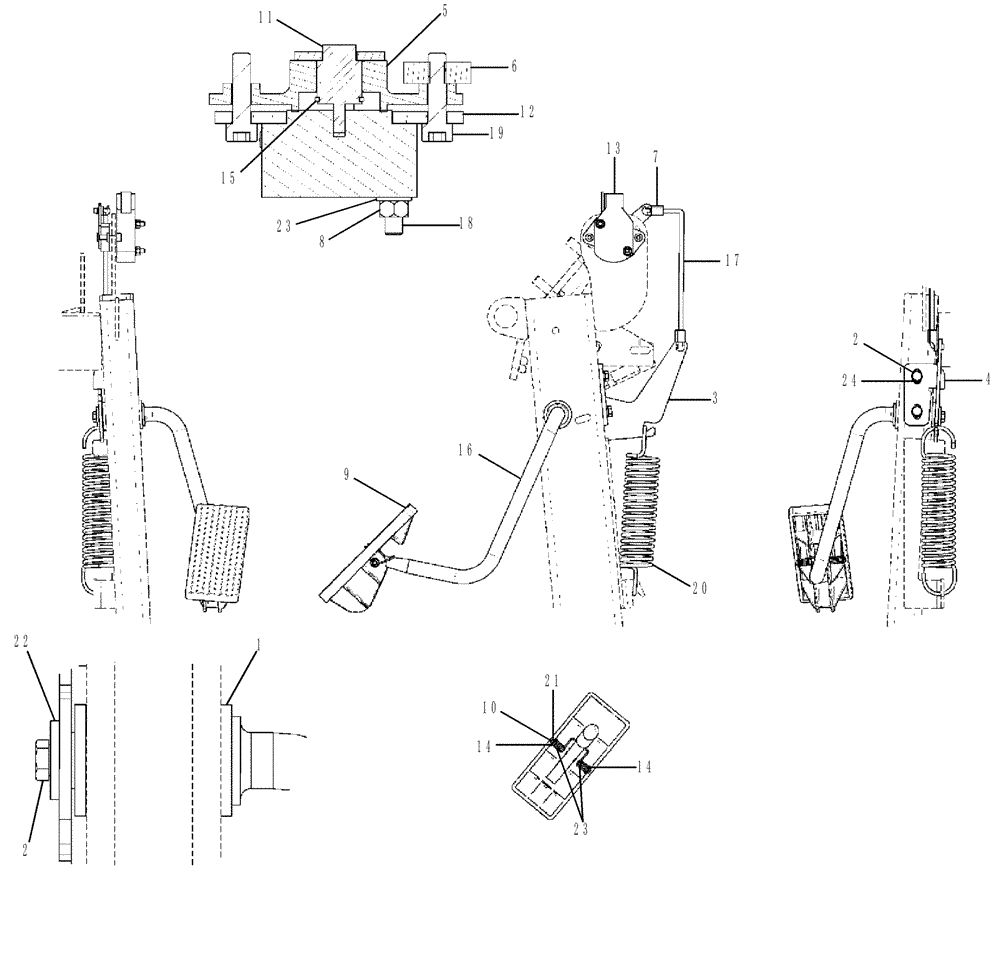

Запчасти Case IH TITAN 4530 (10.220.01) - THROTTLE GROUP (10) - ENGINE

1

300891A1

FLANGED BEARING

Flanged

2шт.

2

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

3шт.

3

344027A3

BRACKET, SUPPORTING

Accelerator

1шт.

4

281115A1

BRACKET

Decelerator Stop

1шт.

5

258524A2

BUSHING

Adapter

1шт.

6

87268223

THREADED BUSHING

1шт.

7

60-2404T1

RETAINER

Plastic Clip

2шт.

8

824-1405

NUT,M5, Cl 5

2шт.

9

297853A2

PEDAL

Foot Throttle Pad

1шт.

10

255291A1

PIN,5mm OD x 56mm L

Throttle Pad

1шт.

11

343196A1

SPECIAL PIN

Potentiometer Accelerator

1шт.

12

343194A1

PLATE

Pedal Senspr Adapter

1шт.

13

231426A1

POTENTIOMETER,2500 Ohm

Throttle

1шт.

14

800-435

CIRCLIP,M5

2шт.

15

800-1112

SNAP RING,M12, Ext

1шт.

16

328353A2

ROD

Decelerator

1шт.

17

344028A1

ROD

Accelerator

1шт.

18

843-1535

SCREW,Flat , M5 x 35mm, Cl 4.8

2шт.

19

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

20

278211A1

SPRING

Extension

1шт.

21

256776A1

SPRING

Foot Throttle Pad

1шт.

22

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

23

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.
