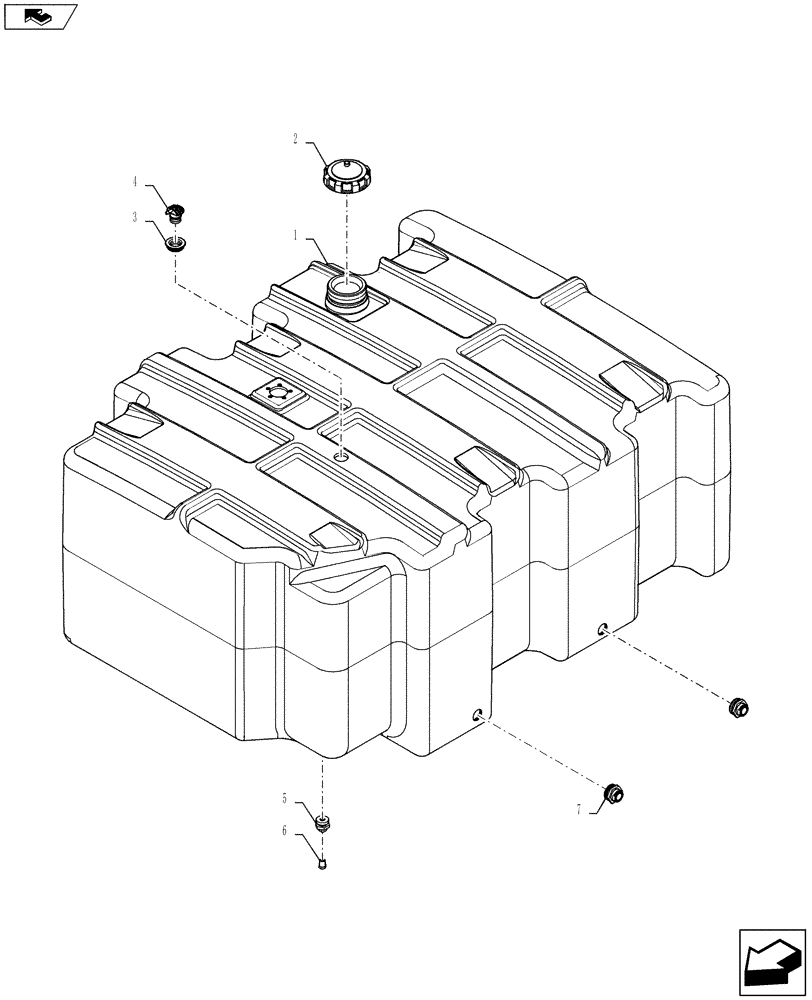

Запчасти Case IH TITAN 4530 (10.216.02) - FUEL TANK ASSEMBLY (10) - ENGINE

1

84360646

FUEL TANK

Fuel, 150 Gal, Poly

1шт.

2

BN324706

CAP

Fuel Tank, Non-Vented

1шт.

2

BN68502

CAP

Fuel Tank, Vented, Optional

1шт.

3

255094A1

GROMMET

Fuel Tank Roll Over Valve

1шт.

4

275800A1

VALVE STEM

Roll Over, Fuel Tank

1шт.

5

BN306082

FITTING

1/2" NPT

1шт.

6

217-405

PLUG,Hex Hd, 1/4" - 18 NPT

1шт.

7

344475A1

FITTING

1/2" NPT

2шт.
