Запчасти Case IH TITAN 4530 (10.216.01[01]) - FUEL TANK MOUNTING (10) - ENGINE

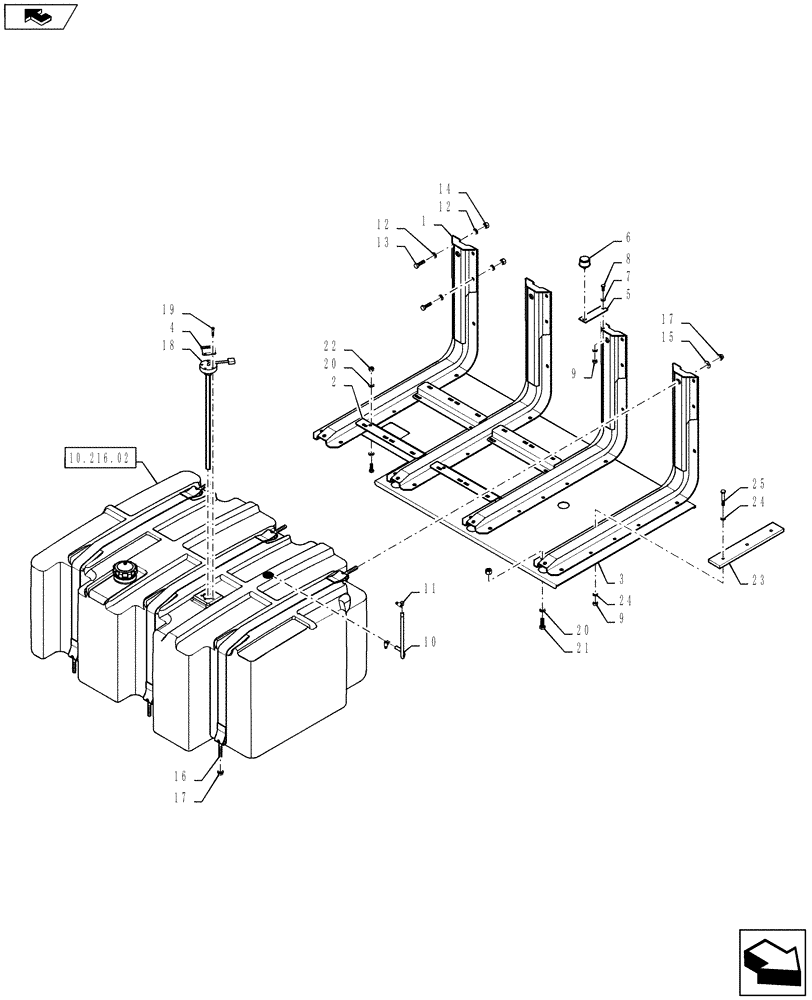

Схема запчастей Case IH TITAN 4530 - (10.216.01[01]) - FUEL TANK MOUNTING (10) - ENGINE
17
10.216.02
13
12
7
18
24
20
5
20
16
4
25
22
19
23
11
21
10
3
1
24
12
14
9
6
home
9
2
15
17
8

Артикул

Название

Примечание

Количество

1

84366490

BRACKET

Fuel Tank

4шт.

2

84367352

SUPPORT

Lower DEF Tank

4шт.

3

84370853

PLATE

Skid, Fuel Tank

1шт.

4

84525974

GUARD

Fuel Sender

1шт.

5

BN324416

BRACKET

Fuel Tank Vent

1шт.

6

86999949

FUEL FILTER

Vent

1шт.

7

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

8

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

10

47591133

HOSE

1шт.

11

87485000

CLAMP,0.25" - 0.62"

Hose

2шт.

12

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

32шт.

13

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

16шт.

14

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

16шт.

15

87310599

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

0.5 x 1.25 x 0.083, CST, DOR

3шт.

16

84369529

STRAP

Fuel and DEF Tank

3шт.

17

87343935

FLANGE NUT

Flange, 1/2-13, GR G, DOR

6шт.

18

84176270

SENSOR

Fuel Level

1шт.

19

87270794

BOLT,Hex, M5 x 30mm, SST

M5 x 30, SS

5шт.

20

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

30шт.

21

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

22шт.

22

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

23

84374149

SPACER

Fuel Tank

1шт.

24

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

25

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

Выбрано товаров: 25
