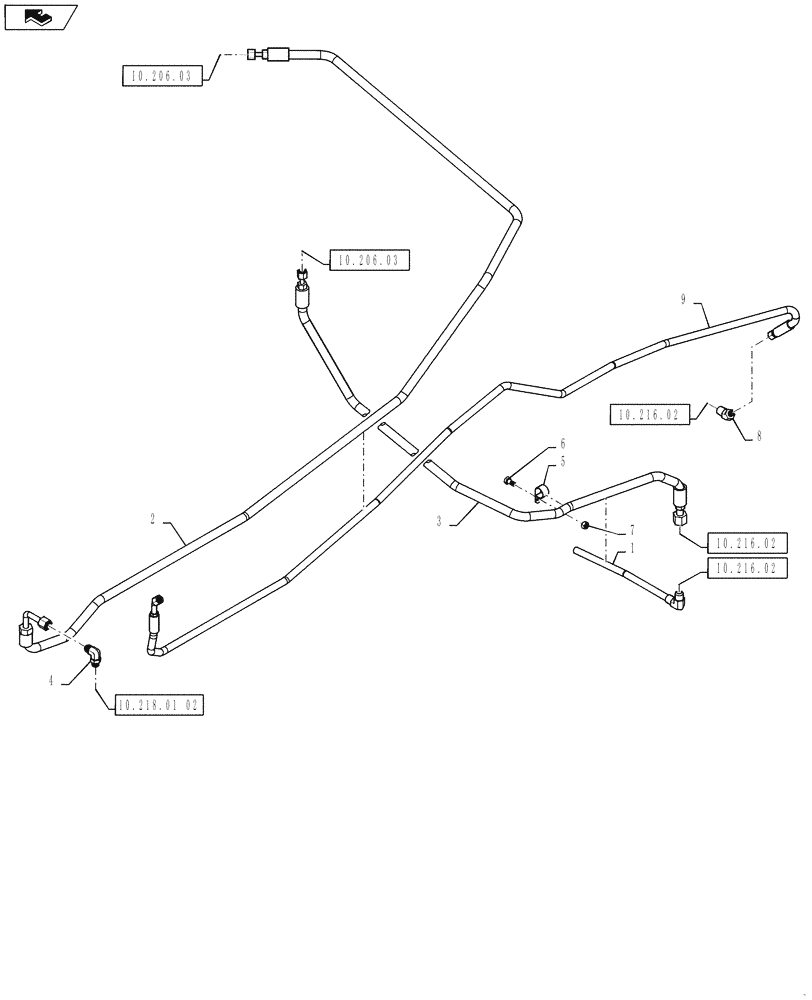

Запчасти Case IH TITAN 4530 (10.214.01) - FUEL FITTINGS AND LINES (10) - ENGINE

1

87269157

FUEL TUBE,332 mm L

Fuel Pick-Up

1шт.

2

84326474

FUEL HOSE

Filter / Primer Pump, To Engine

1шт.

3

84422995

FUEL HOSE

Fuel Tank, To Filter / Primer Pump

1шт.

4

5154710

ELBOW,3/4"-16 UNF, M16 x 1.5

90º, 3/4" - 16 Male x M16 - 1.5

1шт.

5

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

6

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20, 8.8, DOR

1шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

8

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

1шт.

9

84422994

FUEL HOSE

Return, Engine To Tank

1шт.
