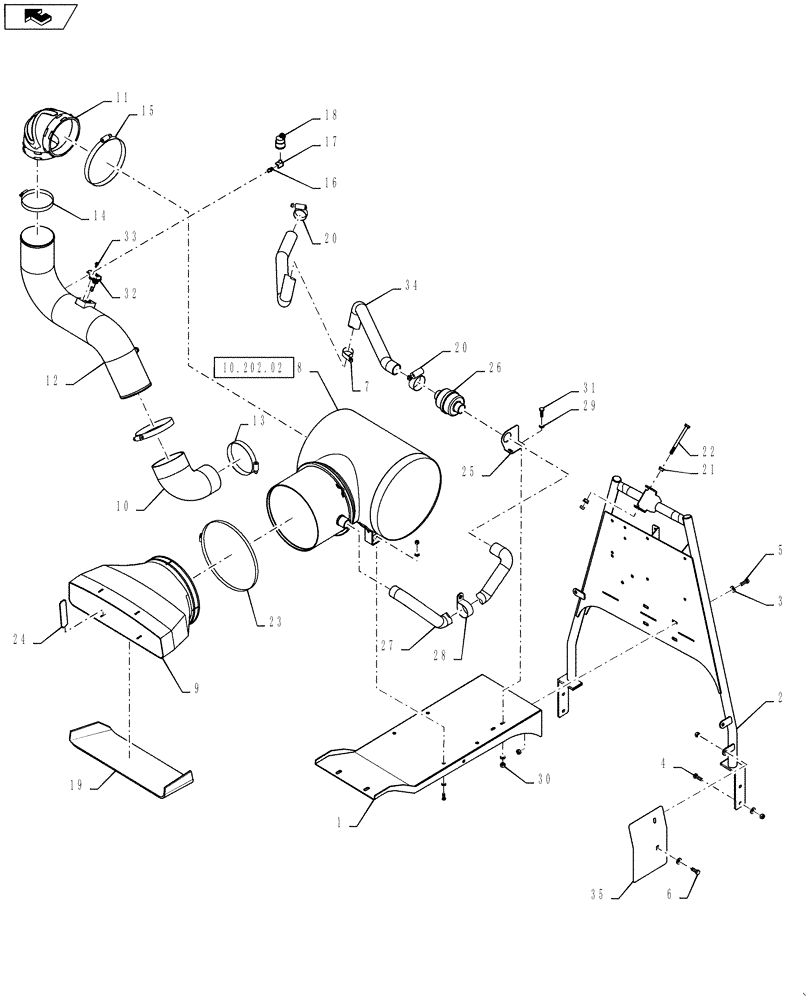

Запчасти Case IH TITAN 4530 (10.202.01) - AIR INTAKE (10) - ENGINE

1

84172089

MOUNT

Air Cleaner

1шт.

2

84177834

SUPPORT

Air Cleaner

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

27шт.

4

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

17шт.

6

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

14шт.

7

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

8

47606527

AIR CLEANER

Assembly

1шт.

See Fig 10.202.02 For Service Parts Breakdown

1шт.

9

84141992

AIR DUCT

1шт.

10

BN306335

ELBOW

90°, 5 x 4

1шт.

11

87418236

ELBOW

6 X 5, 90°

1шт.

12

84363276

AIR INTAKE TUBE

1шт.

13

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

1шт.

14

214-3288

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm, W/ Liner

2шт.

15

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

1шт.

16

D36264

FITTING

Adapter, Air Cleaner

1шт.

17

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

18

279492A1

RESTRICTION SWITCH

Air

1шт.

19

344093A1

FOAM INSULATION

Reflective

1шт.

20

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

4шт.

21

87550203

GUIDE BUSHING

Hood Latch Pin

2шт.

22

86980412

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

1шт.

23

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

24

84180157

PLATE

Standoff

2шт.

25

342654A1

BRACKET, SUPPORTING

Aspirator

1шт.

26

307123A1

VALVE

Aspirator Exhaust

1шт.

27

84228033

HOSE

Aspirator

1шт.

28

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

1шт.

29

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

4шт.

30

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

31

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

32

87482355

SENSOR

Humidity And Temperature

1шт.

33

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

Flange, M6 X 12 Full, 10.9 ZND

2шт.

34

84395730

HOSE

Aspirator

1шт.

35

84471447

HEAT SHIELD

Turbo

1шт.
