Запчасти Case IH TITAN 4530 (90.160.05) - CAB INTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

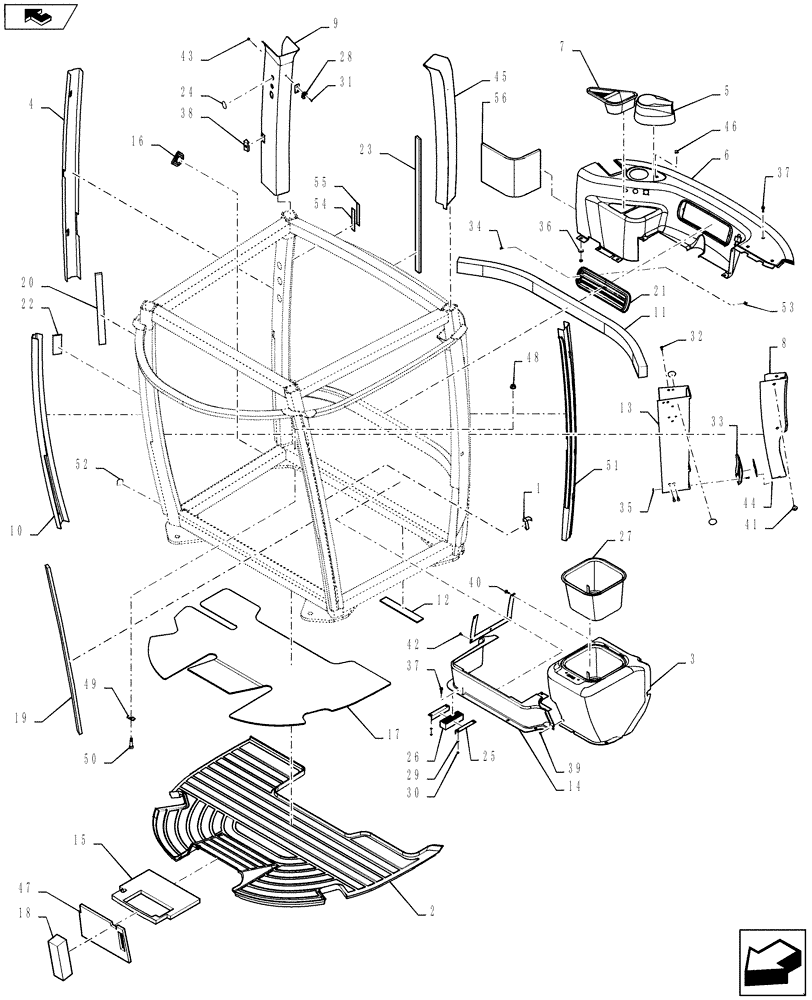

Схема запчастей Case IH TITAN 4530 - (90.160.05) - CAB INTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
home
30
24
8
3
1
4
15
28
43
40
35
14
27
17
25
46
23
18
47
41
22
7
52
29
11
5
54
49
50
44
53
20
19
42
34
39
12
37
55
37
51
10
6
31
13
33
48
56
16
21
38
32
45
2
36
26

Артикул

Название

Примечание

Количество

1

84290530

COVER

Left Hand Door Latch

1шт.

2

47909339

FLOOR MAT

Deluxe Cab

1шт.

3

84308031

COVER

Electrical Area

1шт.

4

84252188

TRIM,1226mm L

Left Hand Post Cover

1шт.

5

84210915

HOLDER,Cup

Cup Holder

1шт.

6

84249986

COVER

Right Hand Rear

1шт.

7

84249993

TRAY

Storage

1шт.

8

84159746

COVER

1шт.

9

84304557

COVER

Right Hand C- Post, Wheat

1шт.

10

84252190

TRIM,1049mm L

Right Hand Post Cover

1шт.

11

87409368

CAB FILTER

Cab, Recirculation

1шт.

12

259461A1

FOAM

Rear ROPS

3шт.

13

303158A5

BRACKET

Bracket

1шт.

14

84308033

COVER

Seat Kickplate

1шт.

15

381027A1

FOAM INSULATION

Acoustical

1шт.

16

84173606

GROMMET

Implement Access

1шт.

17

394772A1

PAD SET

Floor Protection

1шт.

18

384786A2

FOAM

Front Console

1шт.

19

349366A2

FOAM

Tape

1шт.

20

355371A2

TAPE

Foam

1шт.

21

84210917

TRIM PANEL

Louver, CIH

1шт.

22

356717A1

TAPE

Foam

3шт.

23

84413000

TAPE

Tapefoam, Bulk

1шт.

24

376597A2

DECAL

Hole Cover

8шт.

25

308579A1

BRACKET

Cable Access

2шт.

26

60-7021T1

FOAM

Cable Clamp

2шт.

27

119308A2

TRAY

Storage

1шт.

28

114549A1

COAT HOOK

1шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

30

829-1406

NUT,Hex, M6 x 1, Cl 10.9

11шт.

31

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

2шт.

32

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

33

414926A1

BEZEL

Right Hand A-Post

1шт.

34

86900238

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 3/4"

6шт.

35

177269A1

SPRING NUT,M4.2

4шт.

36

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

7шт.

37

855-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

5шт.

38

84252639

DOOR COVER

Right Hand Door Latch

1шт.

39

369937A1

NET

Cargo

1шт.

40

84308891

FASTENER

Christmas Tree

2шт.

41

376553A1

FASTENER

Christmas Tree

3шт.

42

369929A1

FASTENER

Chrismas Tree

7шт.

43

832-10404

NUT,M4 x 0.7, Cl 8.8

2шт.

44

86637656

RIVET,Pop, 1/8" x .337"

8шт.

45

84268814

COVER

Left Hand C-Post

1шт.

46

304061A1

BUMPER,Rubber

Rubber

4шт.

47

384758A1

FOAM INSULATION

Front Console

1шт.

48

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

49

86639232

NUT,Weld, M10

1шт.

50

561-707

HEX SOC SCREW,M10 x 34.4, 12 x 30mm shldr, Cl 12.9

1шт.

51

84124845

COVER

Left Hand A-Post

1шт.

52

87751236

DECAL

Hole Cover

1шт.

53

302862A1

SPRING NUT,4.2 Thread

Spring

2шт.

54

356789A1

FASTENER

Velcro Hook

6шт.

55

357564A1

FASTENER

Velcro Loop

6шт.

56

84360854

FOAM INSULATION,264mm x 426mm x 16mm

1шт.

Выбрано товаров: 56
