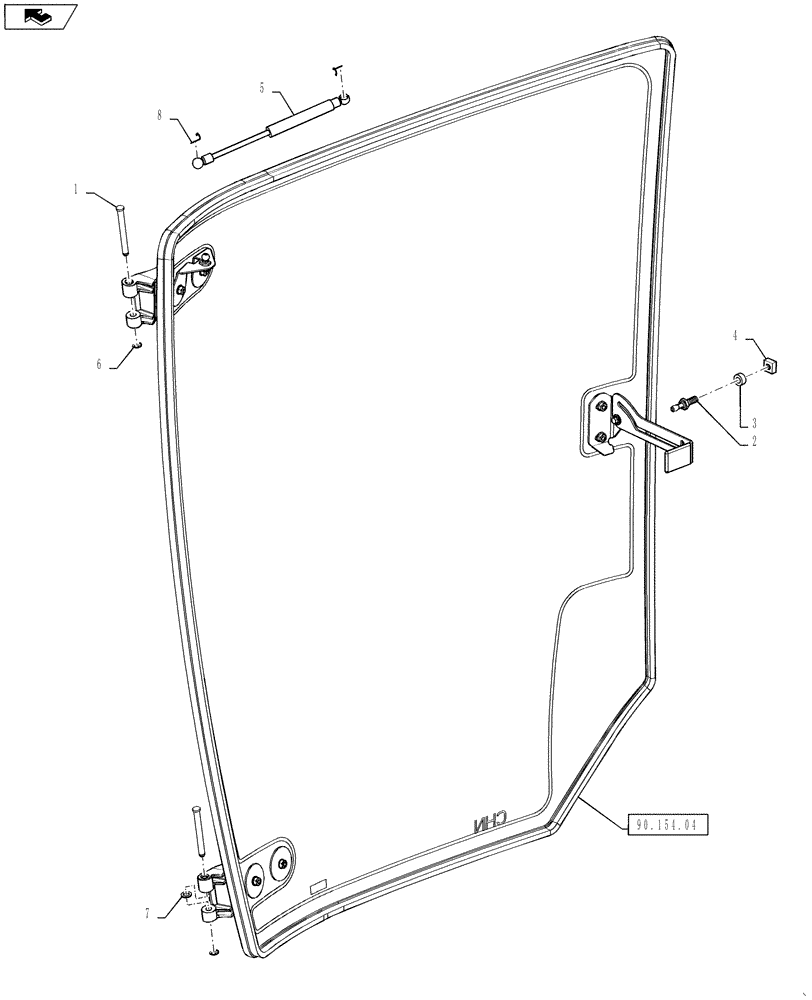

Запчасти Case IH TITAN 4530 (90.154.03) - RH CAB DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84542381

PIN,10mm OD x 98.6mm L

Hinge Pin

2шт.

2

84434978

PIN,10mm OD x 61mm L

RH, Door Latch

1шт.

3

84434981

SPACER,10.5mm ID x 20mm OD x 9mm Thk

1шт.

4

87015110

PLATE,Square, M10 x 1.5

M10 X 1.5 - 6H

1шт.

5

87423389

DAMPER

Gas Cylinder

1шт.

6

733-3220

COTTER PIN,M3.2 x 20

2шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

8

3233348R1

CLIP

Retainer, 13mm

2шт.
