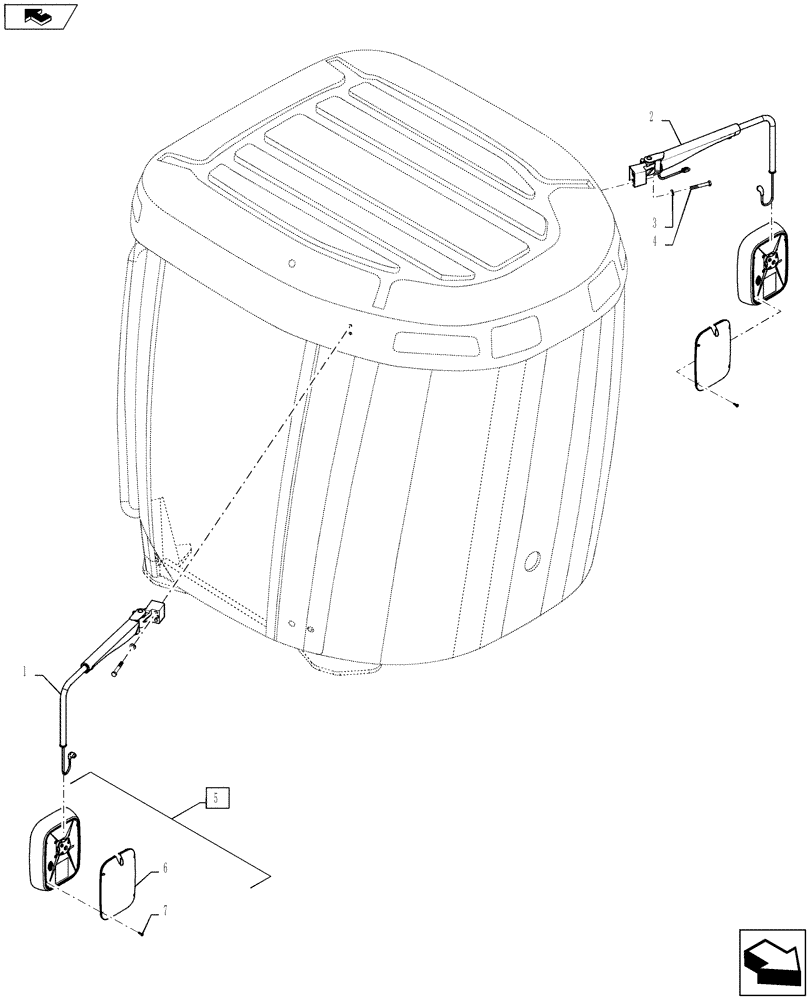

Запчасти Case IH TITAN 4530 (90.150.10) - ELECTRIC MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87686673

ARM

Mirror, RH, Electric

1шт.

2

87703119

ARM

Mirror, LH, Electric

1шт.

3

896-19012

WASHER,M12 x 24.5 x 3, HT

4шт.

4

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

5

87363066

MIRROR,238mm x 328mm

Head, Electric, Includes Ref 6 - 7

2шт.

6

87674626

COVER

Mirror Backing

1шт.

7

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

4шт.

8

82037339

SWITCH ASSY

Mirror Adjustment, Not Shown

1шт.
