Запчасти Case IH TITAN 4530 (90.150.07) - CAB SKIRT (90) - PLATFORM, CAB, BODYWORK AND DECALS

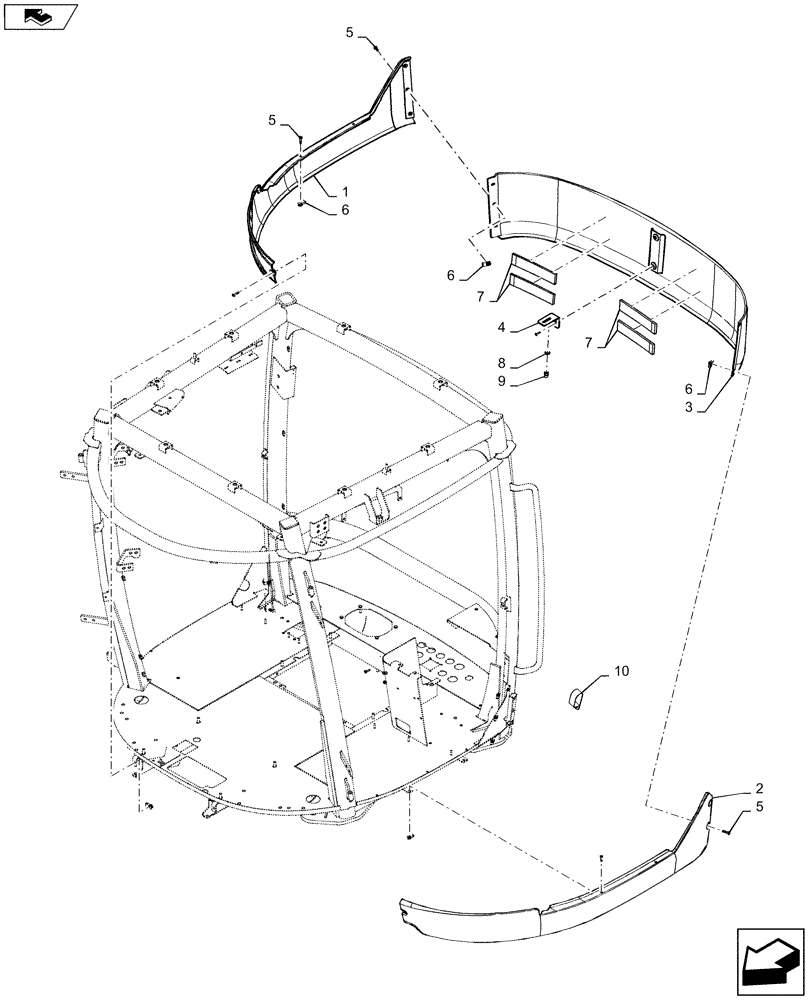

Схема запчастей Case IH TITAN 4530 - (90.150.07) - CAB SKIRT (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
8
9
7
home
6
6
5
7
6
5
2
4
1
5
3

Артикул

Название

Примечание

Количество

1

84398110

SKIRT COVER

RH, Cab

1шт.

2

84398111

SKIRT COVER

LH, Cab

1шт.

3

84310846

SKIRT COVER

Rear, Cab

1шт.

4

84362939

BRACKET, SUPPORTING

Skirt

1шт.

5

87343619

SCREW,Phil Pan Hd, M6 x 25mm, Cl 4.8, Full Thd

M6 x 25 PHD H Full 4.8 DOR

13шт.

6

404882A1

SPRING NUT,M6

Nut, Spring

12шт.

7

403325A2

FOAM,30mm x 50mm x 250mm

Spacer

4шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

10

369708A1

CLAMP

2шт.

Выбрано товаров: 10
