Запчасти Case IH TITAN 4530 (90.124.12) - LUXURY LEATHER SEAT ASSEMBLY, SN YCT033001 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

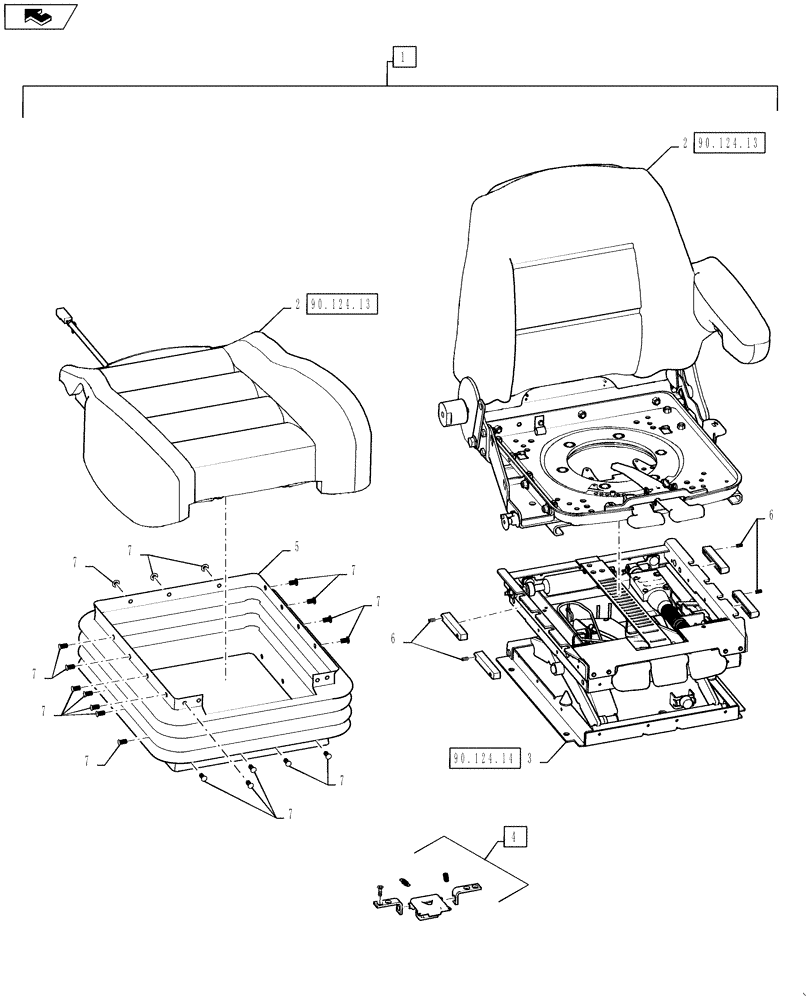

Схема запчастей Case IH TITAN 4530 - (90.124.12) - LUXURY LEATHER SEAT ASSEMBLY, SN YCT033001 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
7
home
7
7
7
90.124.13
3
7
90.124.13
2
7
7
6
6
5
2
7
90.124.14
1
7

Артикул

Название

Примечание

Количество

1

84549741

SEAT

Complete, Luxury, Red Leather Seat With Air Suspension And 3 Position Heat, Incl 2 - 7

1шт.

2

84581880

SVC MAINTENANCE KIT

Assembly, Seat Top, Red Leather

1шт.

See Fig 90.124.13 For Service Parts

1шт.

3

84406039

SERVICE KIT

Complete Air Suspension

1шт.

See Fig 90.124.14 For Service Parts

1шт.

4

87347934

LATCH

Slide, Kit

1шт.

5

87347943

SERVICE KIT

Seat Boot

1шт.

6

302016A1

PACKAGE,SERVICE

Slide Puck Kit

4шт.

7

333659A1

PACKAGE,SERVICE

Boot Button Kit

1шт.

Выбрано товаров: 9
