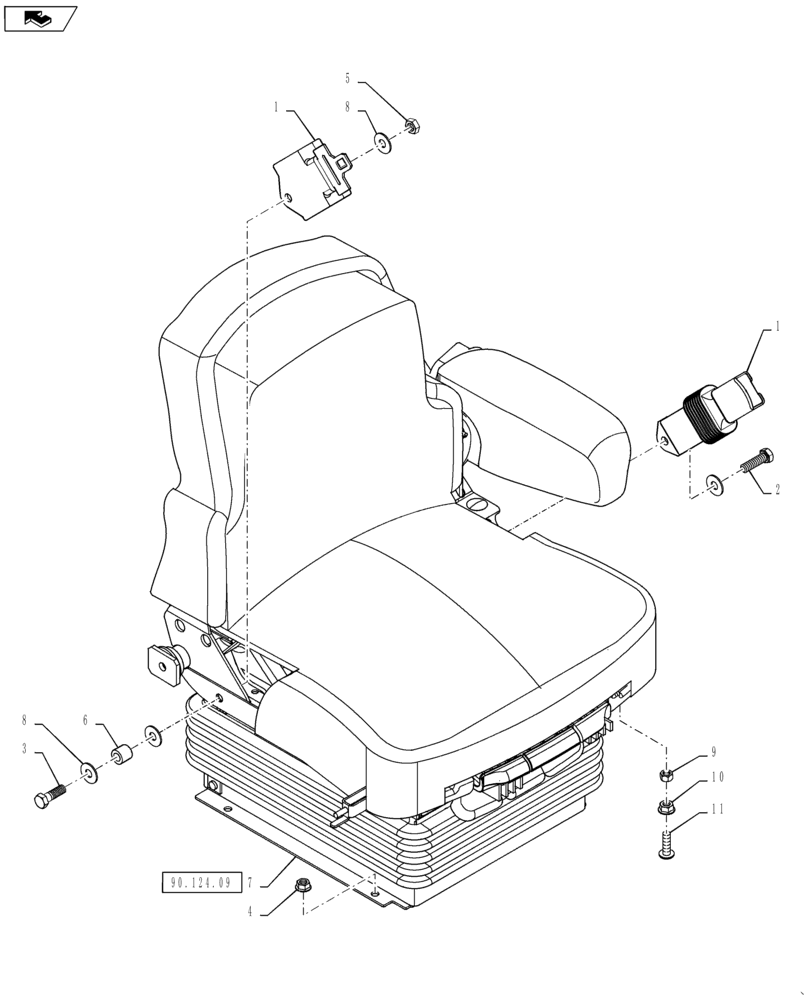

Запчасти Case IH TITAN 4530 (90.124.08) - DELUXE SEAT MOUNTING, SN YCT033001 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84257916

SEAT BELT,48mm W x 1447.8mm L

1шт.

2

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.

3

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

5

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

6

87313413

TUBE SPACER

1шт.

7

84426012

DRIVER SEAT

1шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

9

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

10

86639232

NUT,Weld, M10

1шт.

11

561-707

HEX SOC SCREW,M10 x 34.4, 12 x 30mm shldr, Cl 12.9

1шт.
