Запчасти Case IH TITAN 4530 (90.124.07) - DELUXE AND LUXURY AIR SUSPENSION ASSEMBLY, BSN YCT033001 (90) - PLATFORM, CAB, BODYWORK AND DECALS

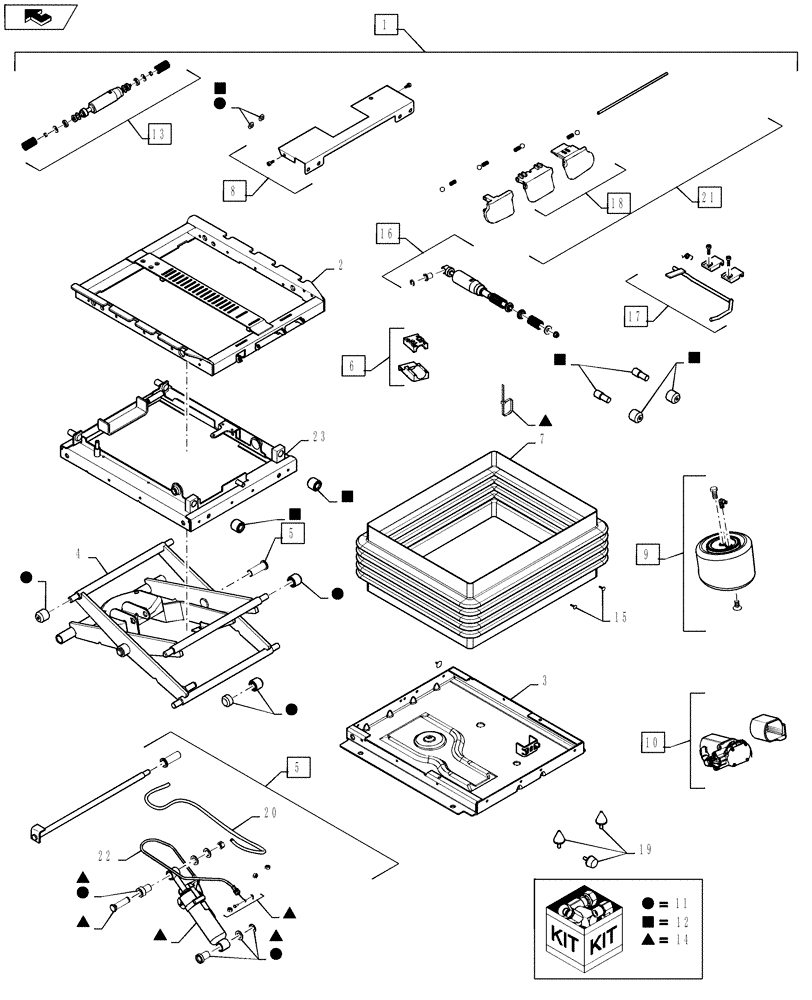

Схема запчастей Case IH TITAN 4530 - (90.124.07) - DELUXE AND LUXURY AIR SUSPENSION ASSEMBLY, BSN YCT033001 (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
6
14
12
14
8
12
11
12
5
20
17
1
11
2
12
10
14
14
22
19
12
9
3
21
11
11
11
12
18
14
7
14
4
5
23
home
16
12
14
15
11
13
14
11

Артикул

Название

Примечание

Количество

1

84406039

SERVICE KIT

Complete Air Suspension, Includes Ref 2 - 6, 8 - 14, and 16 - 23

1шт.

2

333274A2

ISOLATOR

Lateral Track

1шт.

3

333275A1

HOUSING

Lower

1шт.

4

333276A1

ARM

Suspension

1шт.

5

302033A1

SHAFT

Bearing

1шт.

6

333296A1

SERVICE KIT

Kit, Fore and Aft Isolator Shock Block

1шт.

7

87347943

SERVICE KIT

Suspension Boot

1шт.

8

302029A2

PLATE

Cover

1шт.

9

333279A2

KIT

Air Spring

1шт.

10

84392273

KIT

Air Compressor

1шт.

11

87347945

BEARING ASSY

Suspension Bearing And Rollers

1шт.

12

87347946

SERVICE KIT

Isolator Rollers

1шт.

13

87347947

SERVICE KIT

Lateral Isolator Shock Absorber

1шт.

14

447956A1

KIT

Kit, Adjustable Shock Absorber Control

1шт.

15

333659A1

PACKAGE,SERVICE

Kit, Boot Button

1шт.

16

87347948

SERVICE KIT

Fore and Aft Shock Absorber

1шт.

17

373470A2

KIT

Kit, Fore And Aft Isolator Control

1шт.

18

373473A1

PACKAGE,SERVICE

Kit, Lateral Isolator Control

1шт.

19

333295A1

BUMPER

Kit, Suspension Bumper

1шт.

20

87396231

SERVICE KIT

Airline and Fitting

1шт.

21

373469A1

PACKAGE,SERVICE

Kit, Suspension Knob

1шт.

22

87347955

CABLE

Suspension Shock

1шт.

23

333273A1

HOUSING

Upper

1шт.

Выбрано товаров: 23
