Запчасти Case IH TITAN 4530 (90.124.05) - LUXURY LEATHER SEAT ASSEMBLY, BSN YCT033001 (90) - PLATFORM, CAB, BODYWORK AND DECALS

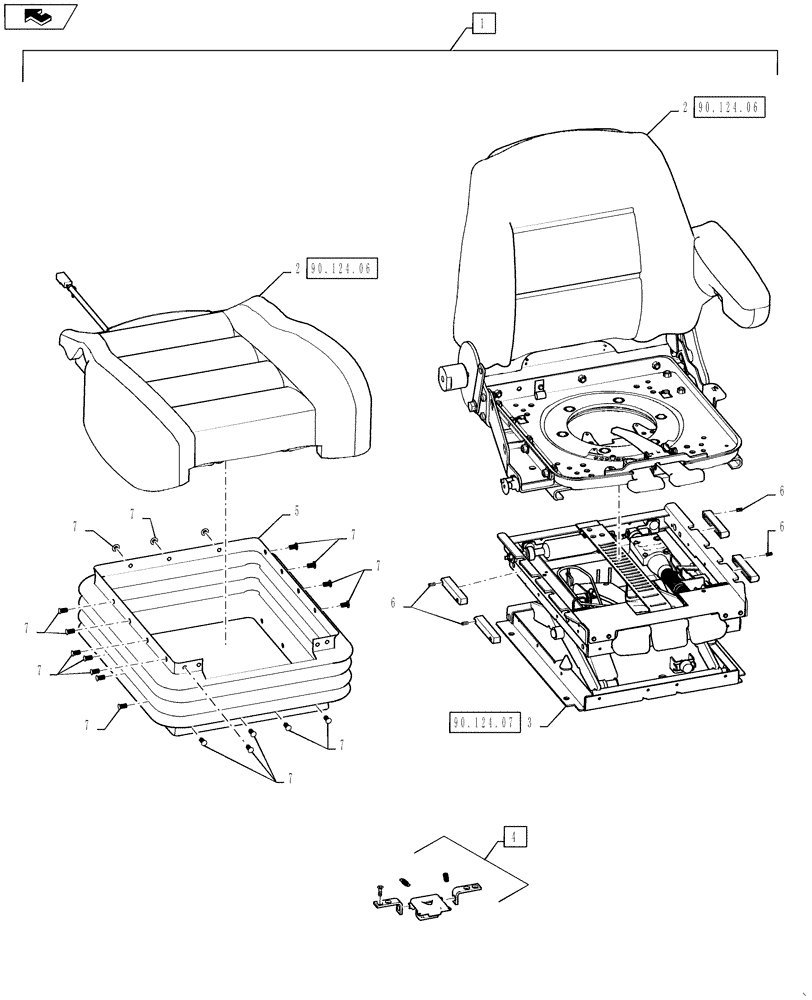

Схема запчастей Case IH TITAN 4530 - (90.124.05) - LUXURY LEATHER SEAT ASSEMBLY, BSN YCT033001 (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
6
5
1
6
6
7
7
2
7
2
7
7
7
home
7
90.124.07
90.124.06
90.124.06
4
7
3

Артикул

Название

Примечание

Количество

1

84162216

SEAT

Complete, Luxury, Leather Seat With Air Suspension And 3 Position Heat, Includes Ref 2 - 7

1шт.

2

87486630

SEAT

Assembly, Seat Top, Red Leather

1шт.

See Fig 90.124.06 For Service Parts Breakdown

1шт.

3

84406039

SERVICE KIT

Complete Air Suspension

1шт.

See Fig 90.124.07 For Service Parts Breakdown

1шт.

4

87347934

LATCH

Slide, Kit

1шт.

5

87347943

SERVICE KIT

Seat Boot

1шт.

6

302016A1

PACKAGE,SERVICE

Slide Puck Kit

4шт.

7

333659A1

PACKAGE,SERVICE

Boot Button Kit

1шт.

Выбрано товаров: 9
