Запчасти Case IH TITAN 4530 (90.124.02) - DELUXE SEAT ASSEMBLY, CLOTH, BSN YCT033001 (90) - PLATFORM, CAB, BODYWORK AND DECALS

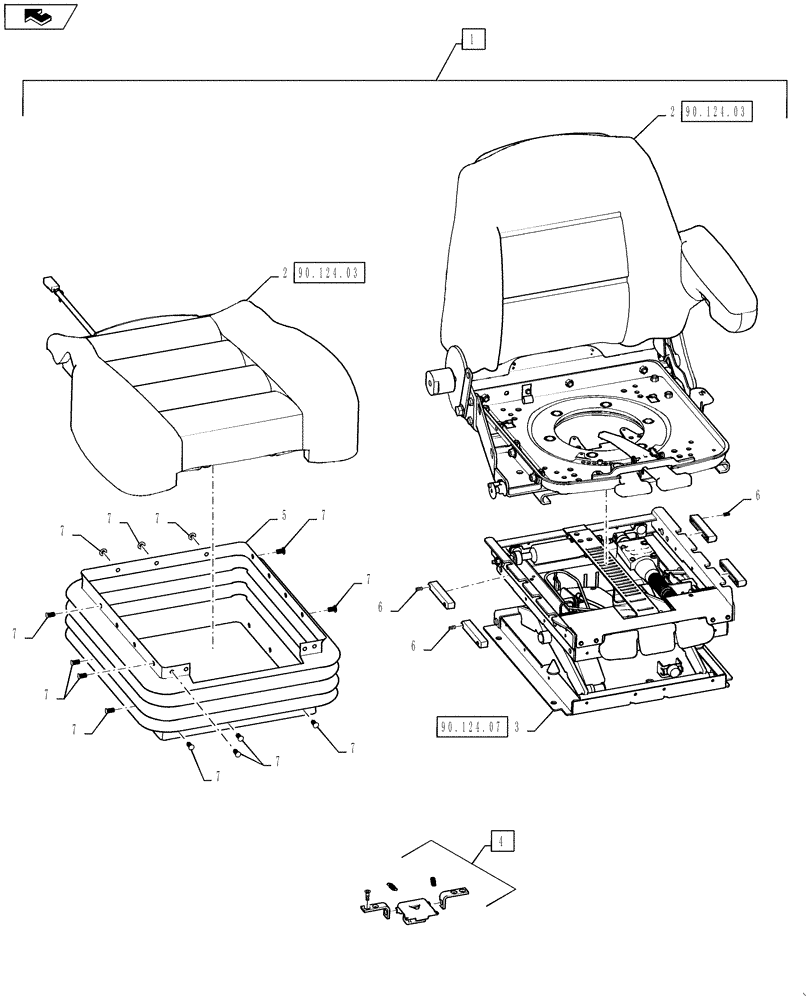

Схема запчастей Case IH TITAN 4530 - (90.124.02) - DELUXE SEAT ASSEMBLY, CLOTH, BSN YCT033001 (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
home
90.124.03
90.124.07
90.124.03
7
7
7
5
3
2
6
2
7
6
7
7
6
7
7
7
7
4
1

Артикул

Название

Примечание

Количество

1

84138931

DRIVER SEAT

Complete, Deluxe, Cloth Seat With Air Suspension, Includes Ref 2 - 7

1шт.

2

84162220

SEAT

Assembly, Top

1шт.

See Fig 90.124.03 For Service Parts Breakdown

1шт.

3

84406039

SERVICE KIT

Complete Air Suspension

1шт.

See Fig 90.124.07 For Service Parts Breakdown

1шт.

4

87347934

LATCH

Slide, Kit

1шт.

5

87347943

SERVICE KIT

Seat Boot

1шт.

6

302016A1

PACKAGE,SERVICE

Slide Puck Kit

4шт.

7

333659A1

PACKAGE,SERVICE

Boot Button Kit

1шт.

Выбрано товаров: 9
