Запчасти Case IH TITAN 4530 (90.124.01) - DELUXE CLOTH SEAT MOUNTING, BSN YCT033001 (90) - PLATFORM, CAB, BODYWORK AND DECALS

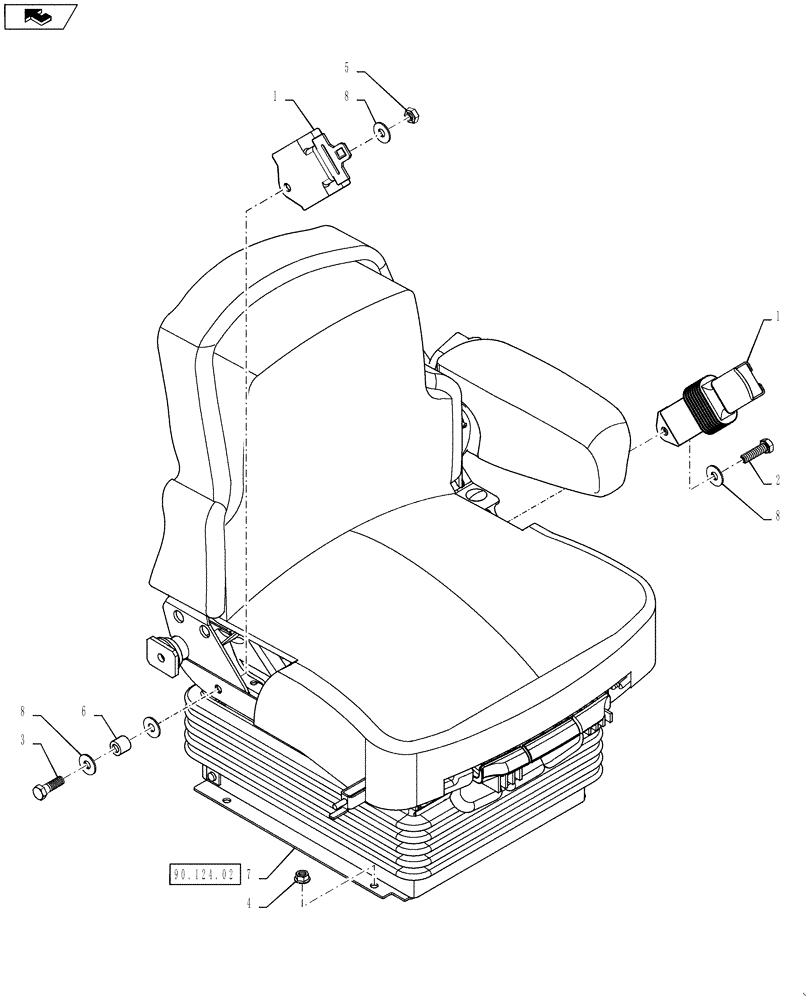

Схема запчастей Case IH TITAN 4530 - (90.124.01) - DELUXE CLOTH SEAT MOUNTING, BSN YCT033001 (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
1
8
2
8
3
90.124.02
home
7
8
6
4
5

Артикул

Название

Примечание

Количество

1

84257916

SEAT BELT,48mm W x 1447.8mm L

1шт.

2

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.

3

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

5

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

6

87313413

TUBE SPACER

.875" X .5" Steel Tube

1шт.

7

84138931

DRIVER SEAT

Deluxe, Cloth Seat With Air Suspension, No Heat

1шт.

See Fig 90.124.02 For Service Parts Breakdown

1шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

Выбрано товаров: 9
