Запчасти Case IH TITAN 4530 (90.118.05) - HANDRAIL, USED WITH 810 FLEX-AIR SYSTEM (90) - PLATFORM, CAB, BODYWORK AND DECALS

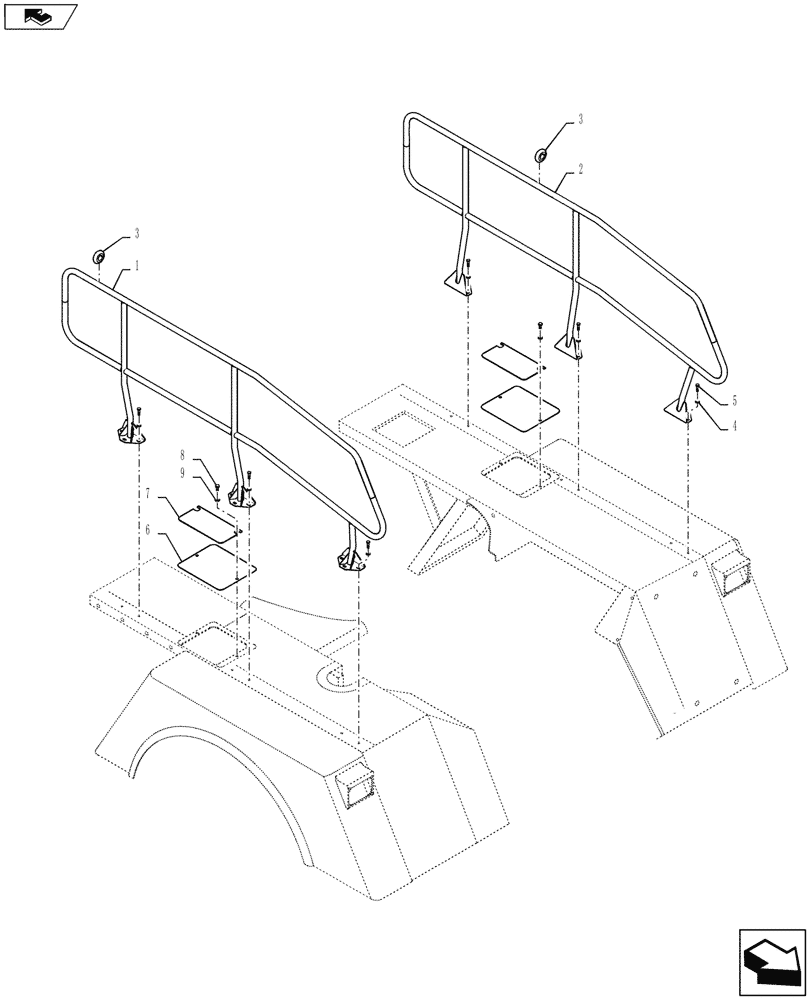

Схема запчастей Case IH TITAN 4530 - (90.118.05) - HANDRAIL, USED WITH 810 FLEX-AIR SYSTEM (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
6
1
3
7
home
5
8
3
9
2

Артикул

Название

Примечание

Количество

1

87267447

HANDRAIL

RH Side

1шт.

2

87267446

HANDRAIL

LH Side

1шт.

3

87267174

BUMPER

Tubular, Door Stop

2шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

18шт.

5

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

18шт.

6

344098A1

COVER

Cradle Access

2шт.

7

344358A1

MAT

Cradle Cover

2шт.

8

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

Выбрано товаров: 9
