(90.118.04) - HANDRAIL, USED WITH 610 LIQUID SYSTEM

Запчасти Case IH TITAN 4530 (90.118.04) - HANDRAIL, USED WITH 610 LIQUID SYSTEM (90) - PLATFORM, CAB, BODYWORK AND DECALS

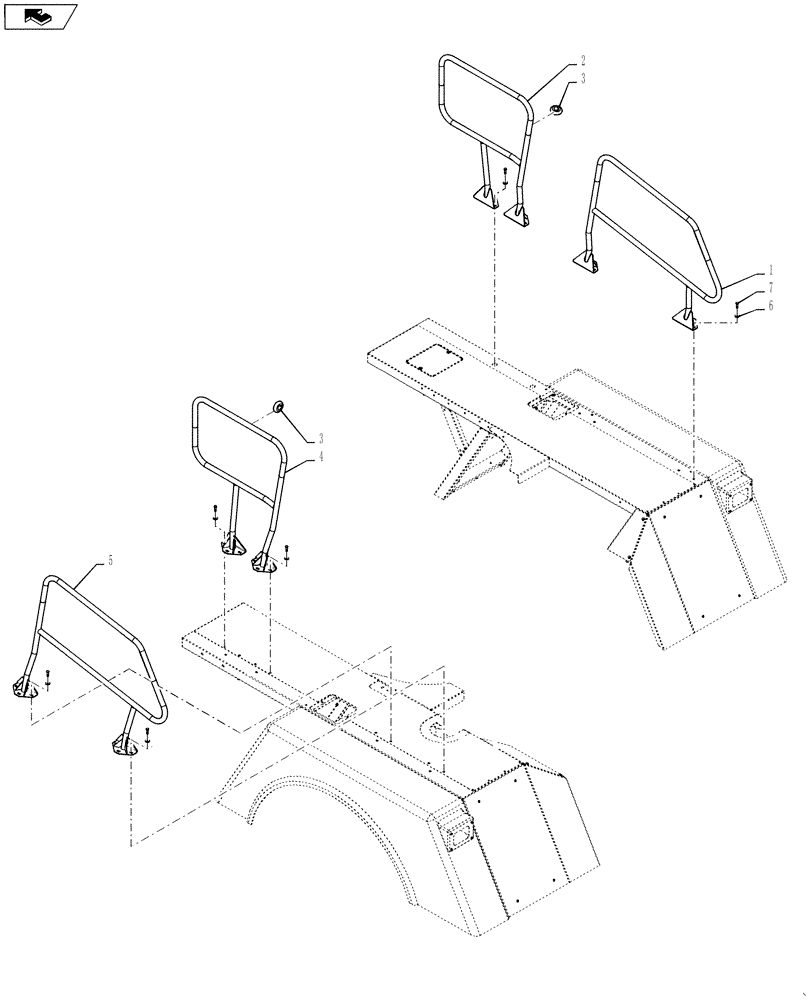

Схема запчастей Case IH TITAN 4530 - (90.118.04) - HANDRAIL, USED WITH 610 LIQUID SYSTEM (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
3
2
home
7
5
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87265078

HANDRAIL

Front, LH Side

1шт.

2

87265080

HANDRAIL

Rear, LH Side

1шт.

3

87267174

BUMPER

Tubular, Door Stop

2шт.

4

87265081

HANDRAIL

Rear, RH Side

1шт.

5

87265079

HANDRAIL

Front, RH Side

1шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

24шт.

7

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

24шт.

Выбрано товаров: 7
