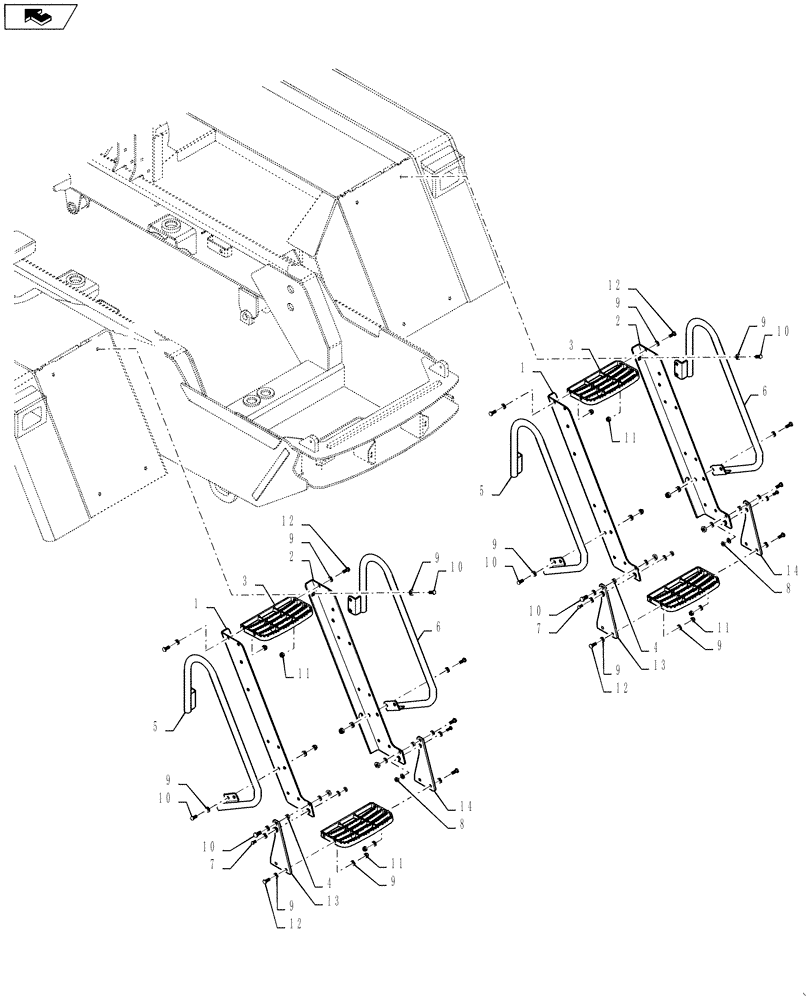

Запчасти Case IH TITAN 4530 (90.118.03) - LADDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87267055

RAIL ASSY.

Right Hand

2шт.

2

87267056

RAIL ASSY.

Left Hand

2шт.

3

87270245

STEP

Black Aluminum

10шт.

4

343810A1

SPACER

Step Extension Hinge

4шт.

5

344137A1

HANDRAIL

Ladder

2шт.

6

344138A1

HANDRAIL

Ladder

2шт.

7

86980362

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.

8

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

9

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

120шт.

10

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

20шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

60шт.

12

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

40шт.

13

87268760

SIDE RAIL

Step Extension, Right Hand

2шт.

14

87268761

SIDE RAIL

Step Extension, Left Hand

2шт.
