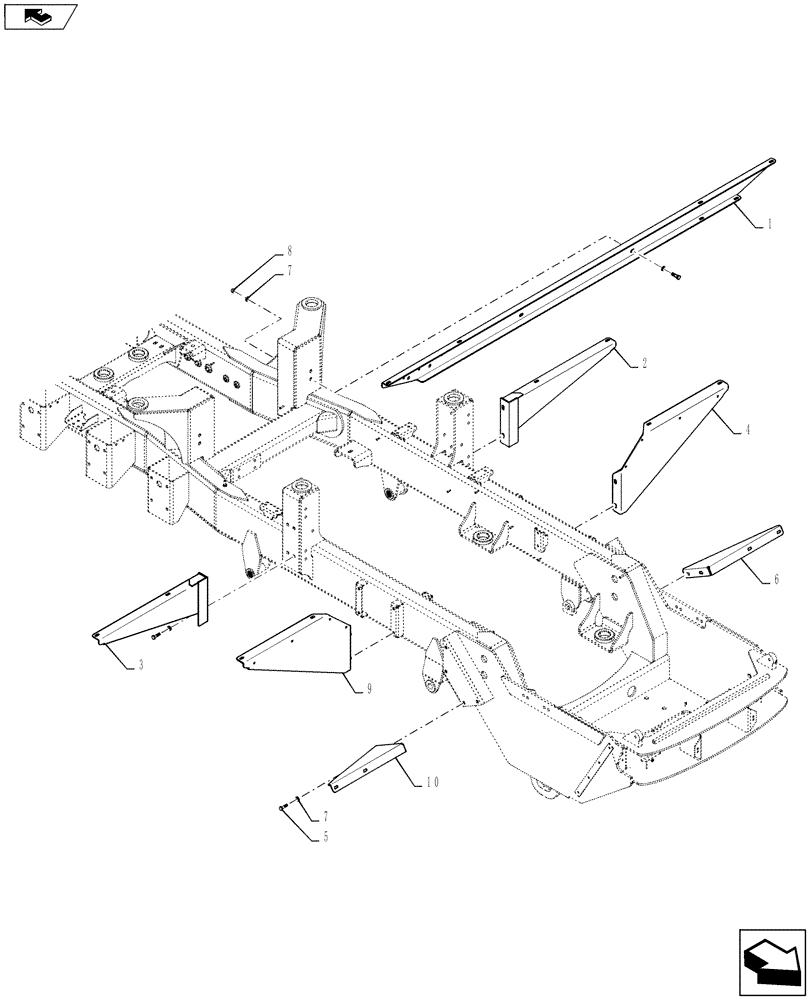

Запчасти Case IH TITAN 4530 (90.118.02) - WALKWAY MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87269633

ANGLE

Walkway Support, Rear

1шт.

2

87268576

SUPPORT

Middle, LH Side

1шт.

3

87268577

SUPPORT

Middle, RH Side

1шт.

4

87675024

SUPPORT

Front, LH Side

1шт.

5

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

16шт.

6

87268582

SUPPORT

Splash, LH Side

1шт.

7

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

20шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

9

87675012

SUPPORT

Front, RH Side

1шт.

10

87268581

SUPPORT

Splash, RH Side

1шт.
