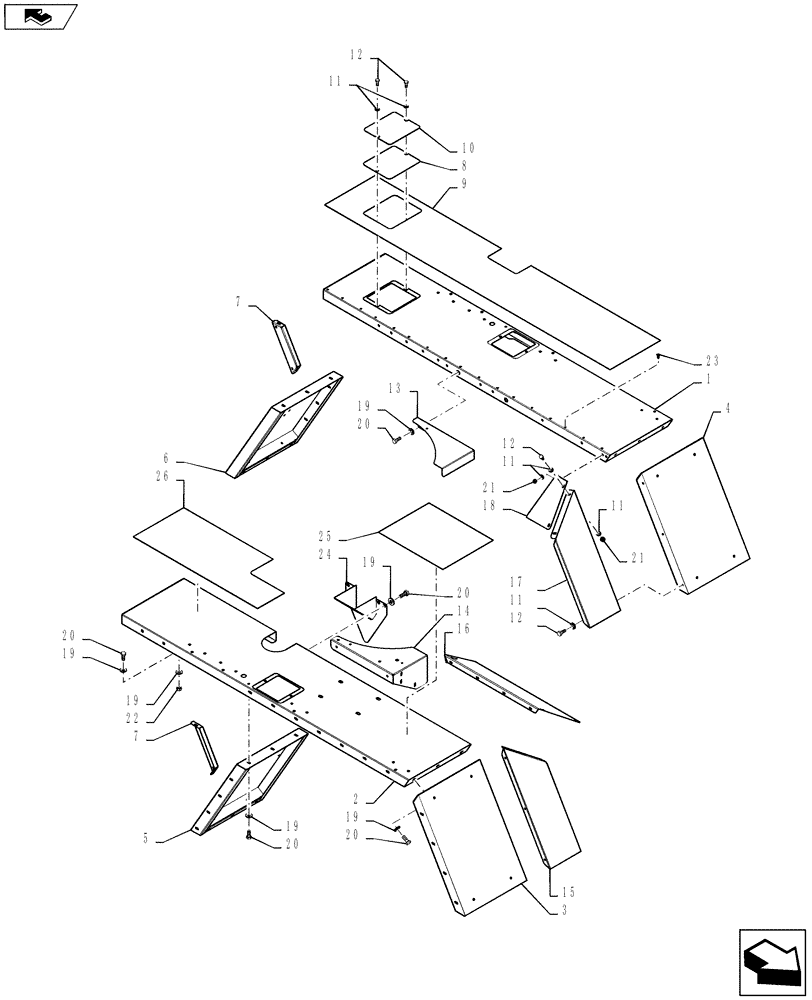

Запчасти Case IH TITAN 4530 (90.118.01[02]) - WALKWAYS, SN YCT033001 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

342878A1

EXTENSION

Walkway, LH Side

1шт.

2

84371162

PLATFORM

Walkway, RH Side

1шт.

3

342884A1

PLATE

Front Splash, RH Side

1шт.

4

342883A1

PLATE

Front Splash, LH Side

1шт.

5

342949A1

PLATE

Rear Splash, RH Side

1шт.

6

342948A1

PLATE

Rear Splash, LH Side

1шт.

7

343807A1

SUPPORT

Brace, Rear Splash Plate

2шт.

8

344095A1

COVER

Hydraulic Filter Access

1шт.

9

344360A1

MAT

Walkway, LH Side

1шт.

10

344359A1

MAT

Oil Tank Cover

1шт.

11

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

38шт.

12

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

23шт.

13

342960A1

PANEL

Rear Filler, LH Side

1шт.

14

84374191

PANEL

Rear Filler, RH Side

1шт.

15

343812A1

PANEL

Front Filler, RH Side

1шт.

16

84371175

PANEL

Front Filler, RH Side

1шт.

17

343811A1

PANEL

Front Filler, LH Side

1шт.

18

342959A1

PANEL

Front Filler, LH Side

1шт.

19

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

48шт.

20

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

36шт.

21

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

15шт.

22

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

23

BN2394894

RIVET

Pop, 3/16

10шт.

24

84373440

SHIELD

Exhaust

1шт.

25

47364828

FLOOR MAT

RH Walkway, Front

1шт.

26

47364829

FLOOR MAT

RH Walkway, Rear

1шт.
