(90.116.04) - REAR AXLE MUDFLAP

Запчасти Case IH TITAN 4530 (90.116.04) - REAR AXLE MUDFLAP (90) - PLATFORM, CAB, BODYWORK AND DECALS

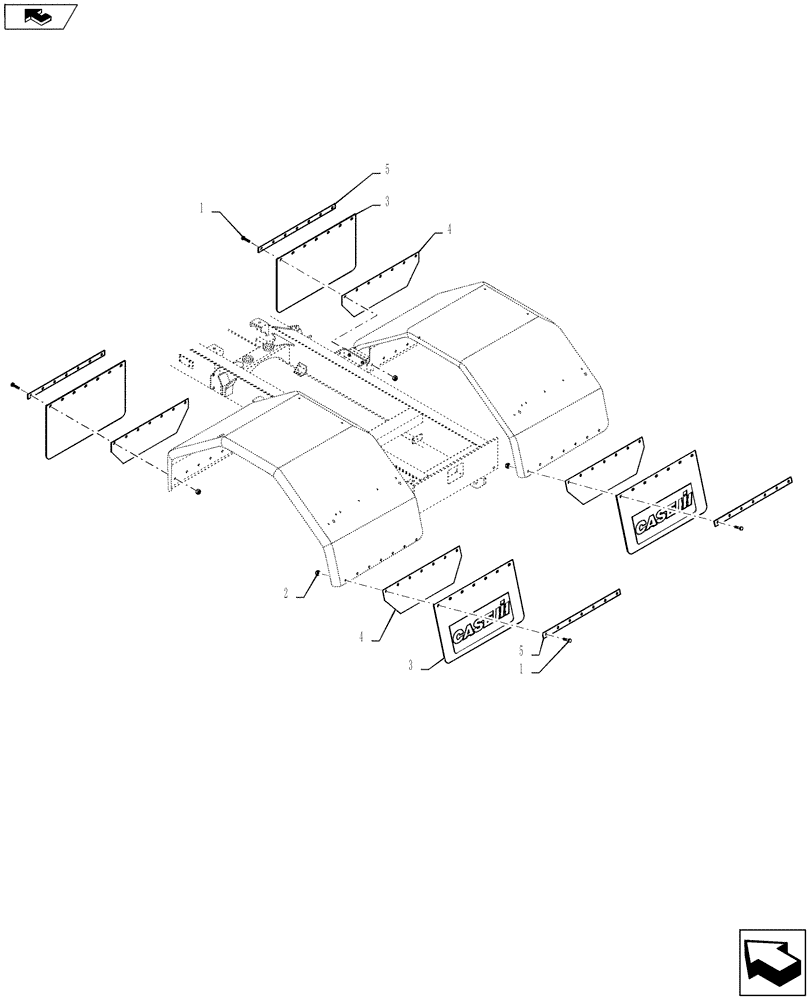

Схема запчастей Case IH TITAN 4530 - (90.116.04) - REAR AXLE MUDFLAP (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
1
2
3
3
1
5
4
home
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

28шт.

2

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

28шт.

3

87668024

MUDFLAP

CASE IH, 24X40

4шт.

4

BN320351

SUPPORT

Mudflap, Poly

4шт.

5

BN320352

STIFFENER

Mudflap, Poly

4шт.

Выбрано товаров: 5
