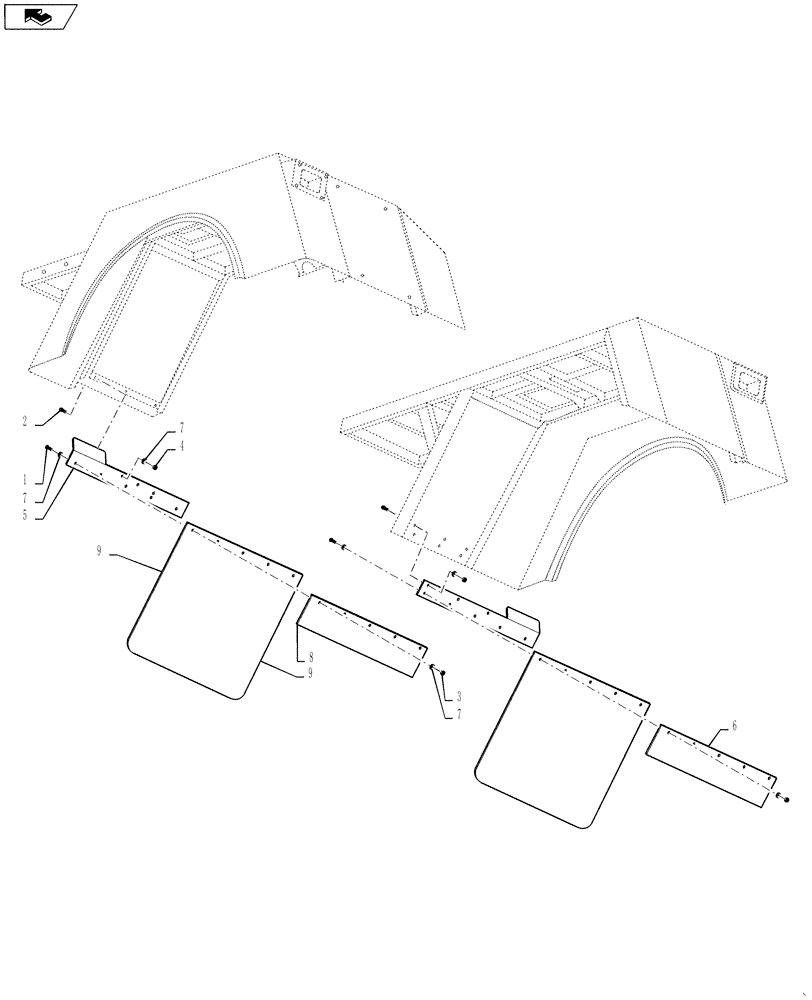

Запчасти Case IH TITAN 4530 (90.116.03) - FRONT AXLE MUDFLAP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

10шт.

2

86980419

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

6шт.

3

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

10шт.

4

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

6шт.

5

87267014

SUPPORT

Mudflap, RH Side

1шт.

6

87267015

SUPPORT

Mudflap, LH Side

1шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

20шт.

8

BN306262

BRACKET, SUPPORTING

Mudflap

2шт.

9

BN310598

MUDFLAP

Front

2шт.
