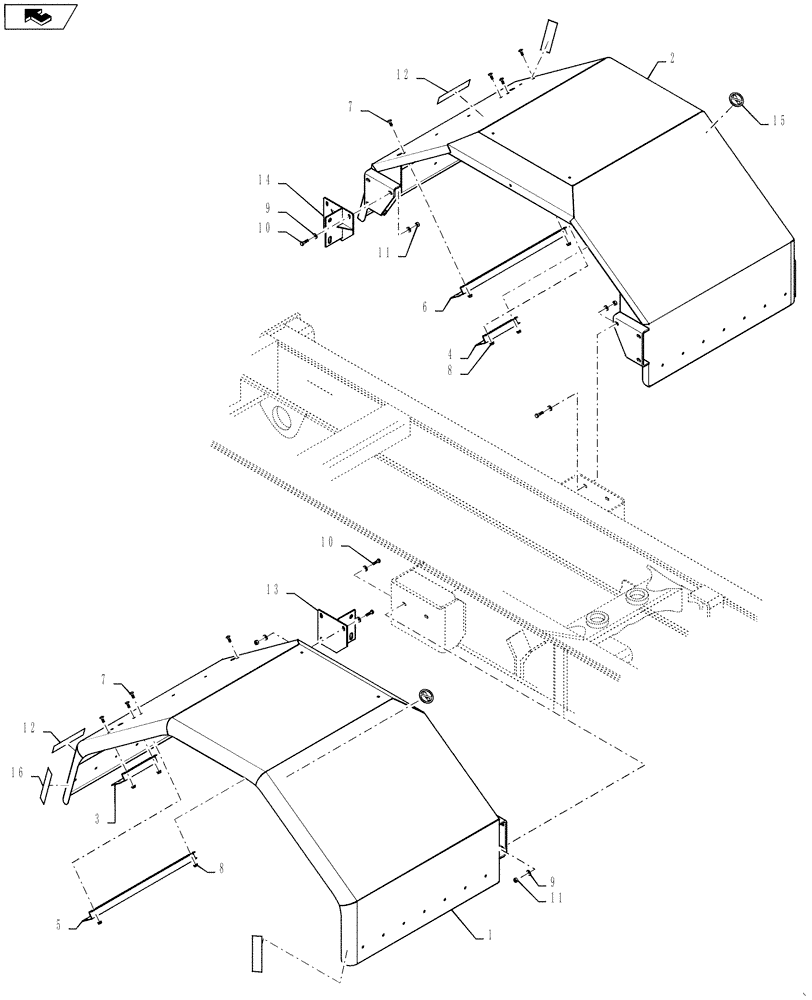

Запчасти Case IH TITAN 4530 (90.116.02) - REAR FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87266856

FENDER

RH Side, 73"

1шт.

2

87266857

FENDER

LH Side, 73"

1шт.

3

87267039

COVER

Wire Harness, Short

1шт.

4

87267037

COVER

Wire Harness, Short

1шт.

5

87267040

COVER

Wire Harness, Long

1шт.

6

87267038

COVER

Wire Harness, Long

1шт.

7

BN50205

BOLT

1/4-20X.625,TH,SS,PHILIPS

24шт.

8

BN50052

LOCK NUT,1/4"-20, USR, SS

12шт.

9

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 X 28 X 4 HDN DOR

24шт.

10

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

12шт.

11

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

12шт.

12

311863A1

REFLECTOR

Retroreflective Red, 9 x 2

2шт.

13

BN311484

MOUNTING PLATE

Rear Fender, RH Side

1шт.

14

BN311485

MOUNTING PLATE

Rear Fender, LH Side

1шт.

15

84432904

DECAL

No Step

2шт.

16

311864A1

REFLECTOR

Retroreflective Amber

4шт.
