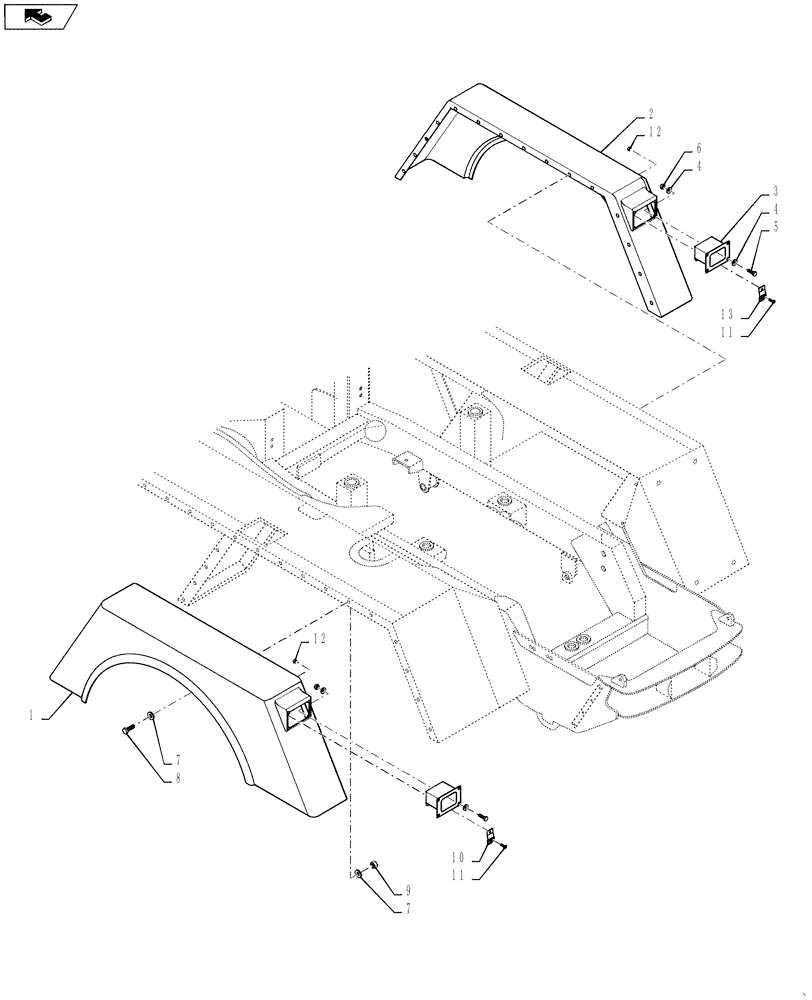

Запчасти Case IH TITAN 4530 (90.116.01) - FRONT FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86986680

FENDER

Front, RH

1шт.

2

86986681

FENDER

Front, LH

1шт.

3

86986682

MOUNTING PLATE

Park/Turn Light

2шт.

4

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

16шт.

5

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

8шт.

6

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

8шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

60шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

30шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

30шт.

10

87267088

RETAINER

Assembly, RH

1шт.

11

BN52348

BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless

10-32X1/2SSPH,PHILLIP

2шт.

12

225-14210

NUT,#10-32

2шт.

13

87267087

RETAINER

Assembly, LH

1шт.

14

86986699

LIGHT

Park/Turn, Not Shown

2шт.
