Запчасти Case IH TITAN 4530 (90.115.02) - RH CONSOLE SUBASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

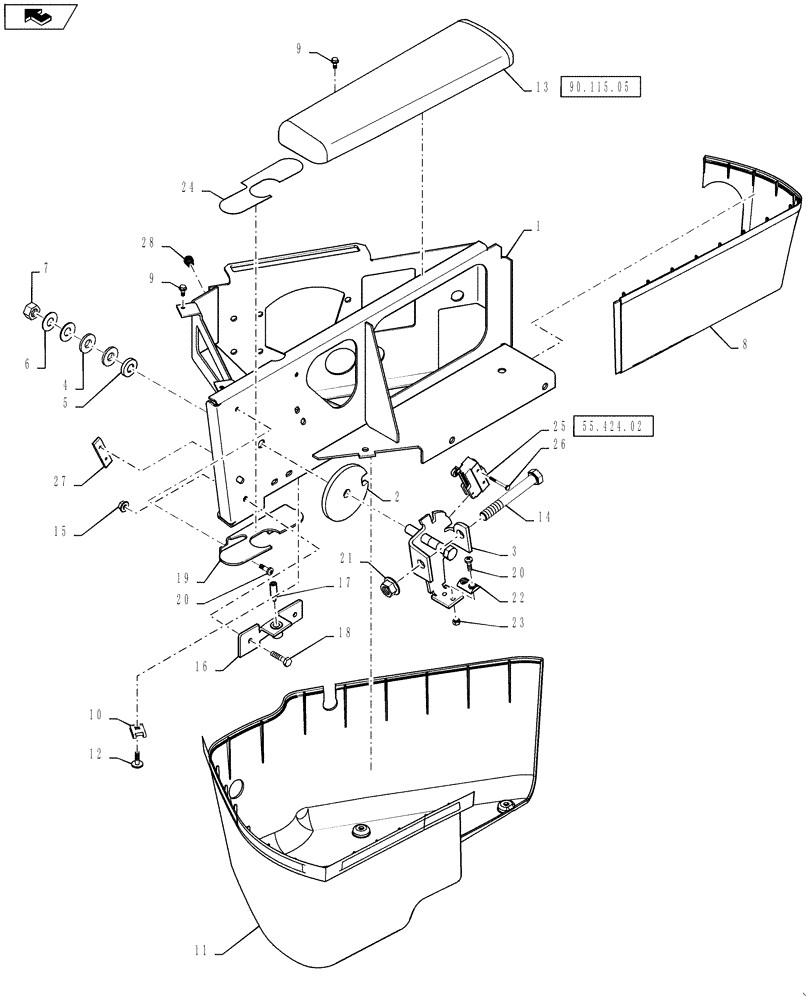

Схема запчастей Case IH TITAN 4530 - (90.115.02) - RH CONSOLE SUBASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
27
2
9
14
24
6
19
23
1
13
55.424.02
4
11
9
21
90.115.05
8
26
5
18
12
20
home
16
10
15
25
3
22
28
7
20

Артикул

Название

Примечание

Количество

1

86986775

FRAME

Assembly, RH Console, Includes Ref 28

1шт.

2

251090A1

THRUST WASHER

Wear

1шт.

3

86986778

SUPPORT

Propulsion Lever

1шт.

4

87529248

WASHER,0.47" ID x 1" OD x 0.1" Thk

.469 X 1.000 X .105 HDN DOR

2шт.

5

159688R91

THRUST BEARING

1шт.

6

1994980C1

BELLEVILLE WASHER

Friction Control

2шт.

7

BN305066

NUT,7/16" - 14, Gr 8

7/16-14,FLN,G8

1шт.

8

130412A1

COVER

Console

1шт.

9

87343621

SCREW,Hex Wshr Hd, M4 x 10mm, Cl 4.9, Full Thd

4шт.

10

131-642

SPRING NUT,Tinn, U, #10

4шт.

11

118321A2

SKIRT

Console Cover, Front

1шт.

12

357481A1

SCREW,Truss, #10 - 16 x 3/4"

#10-16 X 3/4 PH Truss

4шт.

13

128970A3

ARMREST

Assembly, Console

1шт.

See Fig 90.115.05 For Service Parts Breakdown

1шт.

14

86980429

BOLT,Hex, M12 - 1.75 x 90mm, Cl 8.8, DOR

1шт.

15

86511444

FLANGE NUT,Hex, M6 x 1

6шт.

16

86986779

DETENT

Stop Assembly

1шт.

17

87267355

SPRING

Plunger

1шт.

18

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

3шт.

19

86986772

PLATE

Propulsion Handle

1шт.

20

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

4шт.

21

87344225

FLANGE NUT,M12 - 1.75, 8, DOR, Flange

2шт.

22

87266876

BLOCK

Detent

1шт.

23

87016571

NUT,M5, Cl 5

2шт.

24

87267344

DECAL

Deceleration/Cruise

1шт.

25

BN323496

TOGGLE SWITCH

Neutral Safety Switch

1шт.

See Fig 55.424.01 For Service Parts Breakdown

1шт.

26

86511818

SCREW,Pan HD, M3 x 0.5 x 30mm, Cl 4.8

2шт.

27

87492830

PLATE

Propulsion Switch Mount

1шт.

28

336304A1

INSERT

Threaded

6шт.

Выбрано товаров: 30
