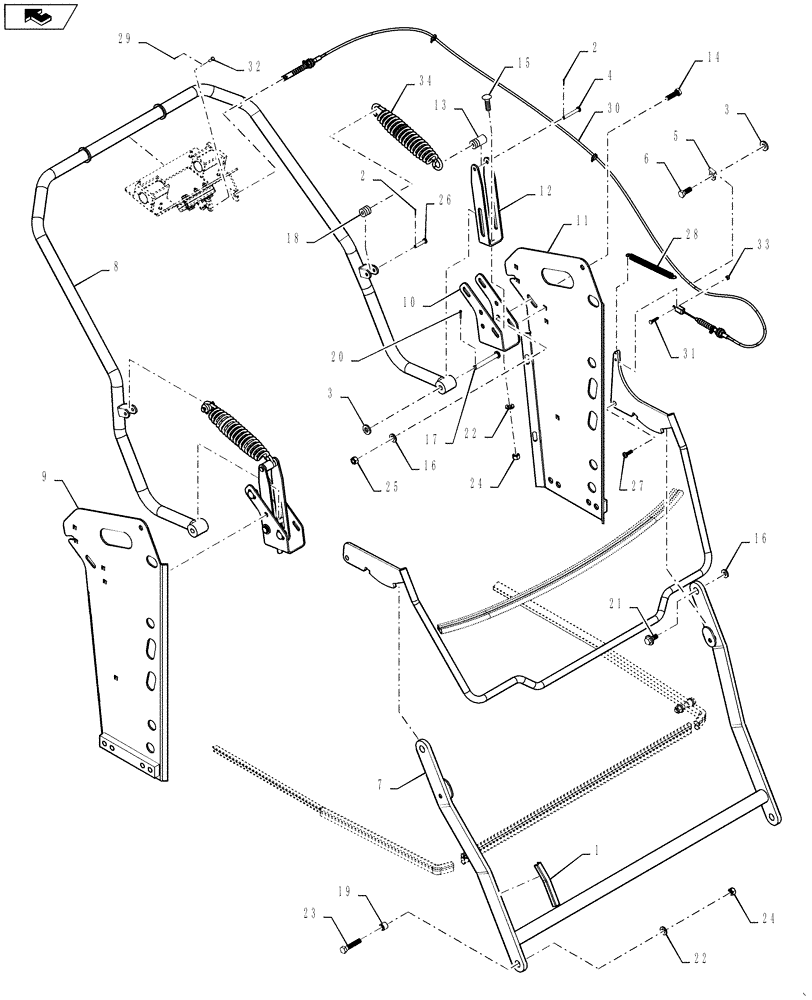

Запчасти Case IH TITAN 4530 (90.100.02) - HOOD TILT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

388554A1

GROMMET

Edge

2шт.

2

86639115

COTTER PIN,M2 x 12

4шт.

3

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 X 28 X 4 HDN DOR

12шт.

4

87344039

PIN

Clevis, M8 X 60 HTS DOR

2шт.

5

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

1шт.

6

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

6шт.

7

315197A4

ARM ASSY.

Front Hood

1шт.

8

339543A2

ARM

Rear Hood Lift

1шт.

9

84140971

SUPPORT

Radiator, RH

1шт.

10

339551A1

BRACKET

Adjustable Base

2шт.

11

84140970

SUPPORT

Radiator, LH

1шт.

12

339547A1

ADJUSTABLE CLEVIS

2шт.

13

313992A1

SPOOL

Spring

2шт.

14

87342171

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

Carriage M10 X 20, 8.8, DOR

4шт.

15

86981675

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

Carriage M12 X 40, 8.8, DOR

2шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

17

87344037

CLEVIS PIN,M12 x 90

2шт.

18

320429A1

SPOOL

Small Spring

2шт.

19

316937A1

SPACER,12.2mm ID x 19.1mm OD x 14mm Thk

Hood Linkage

2шт.

20

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

21

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20, 8.8, DOR

2шт.

22

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

6шт.

23

86980426

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

24

87344210

NUT

M12 - 1.75, 10.9, DOR

4шт.

25

87344209

NUT,M10 x 1.5, Cl 10, DOR

4шт.

26

87344040

PIN,8mm OD x 40mm L

Clevis, M8 X 40 HTS DOR

2шт.

27

357893A1

SCREW

Button Head

2шт.

28

L106237

SPRING

Return

1шт.

29

86639114

COTTER PIN,M1.6 x 10

1шт.

30

443297A1

CABLE,2363mm L

1шт.

31

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

13шт.

32

87344038

PIN

Clevis, M6 X 20 HTS DOR

1шт.

33

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.

34

339549A1

COIL SPRING

Extension

2шт.
