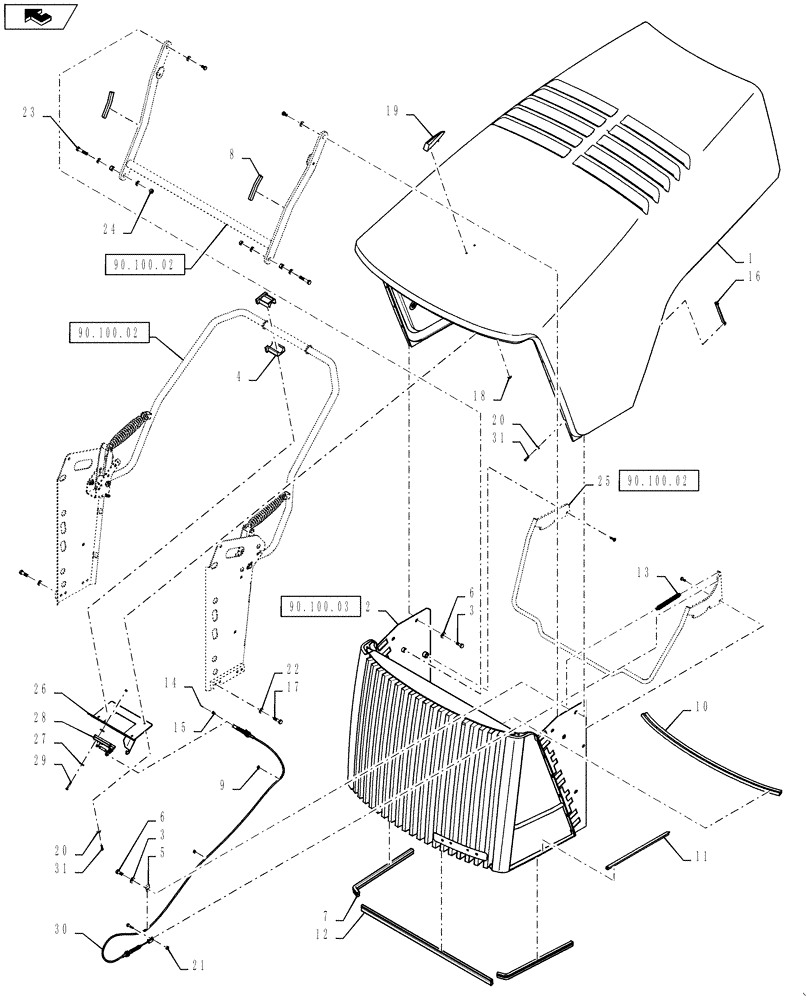

Запчасти Case IH TITAN 4530 (90.100.01) - HOOD & LATCH ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

343391A1

HOOD

1шт.

2

87564142

GRILLE

Assembly

1шт.

See Fig 90.100.03 For Service Parts

1шт.

3

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 X 28 X 4MM, DOR

1шт.

4

314842A3

BEARING

Sleeve

4шт.

5

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

1шт.

6

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

6шт.

7

394002A1

SEAL

Bulb

1шт.

8

388554A1

GROMMET

Edge

2шт.

9

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

10

370990A1

SEAL

Bulb

1шт.

11

398871A1

SEAL

Bulb

2шт.

12

369742A1

SEAL

Bulb

1шт.

13

L106237

SPRING

Return

1шт.

14

86639114

COTTER PIN,M1.6 x 10

1шт.

15

87344038

PIN

Clevis, M6 X 20 HTS DOR

1шт.

16

356813A2

BRACKET, SUPPORTING

Nut Strip

4шт.

17

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

8шт.

18

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

19

87353799

GUIDE

Hood Sight

1шт.

20

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

12шт.

21

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

22

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

23

86980426

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

24

87344210

NUT

M12 - 1.75, 10.9, DOR

2шт.

25

325525A3

ARM

Hood Safety

1шт.

26

445932A1

PLATE

Hood Latch

1шт.

27

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

12шт.

28

87550202

LATCH

Hood

1шт.

Strike Bolt is #86980412, See Fig 10.202.01

1шт.

29

86980364

BOLT,Hex, M6 - 1 x 40mm, Cl 8.8, DOR

M6-1 X 40, 8.8, DOR

4шт.

30

443297A1

CABLE,2363mm L

1шт.

31

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

13шт.
