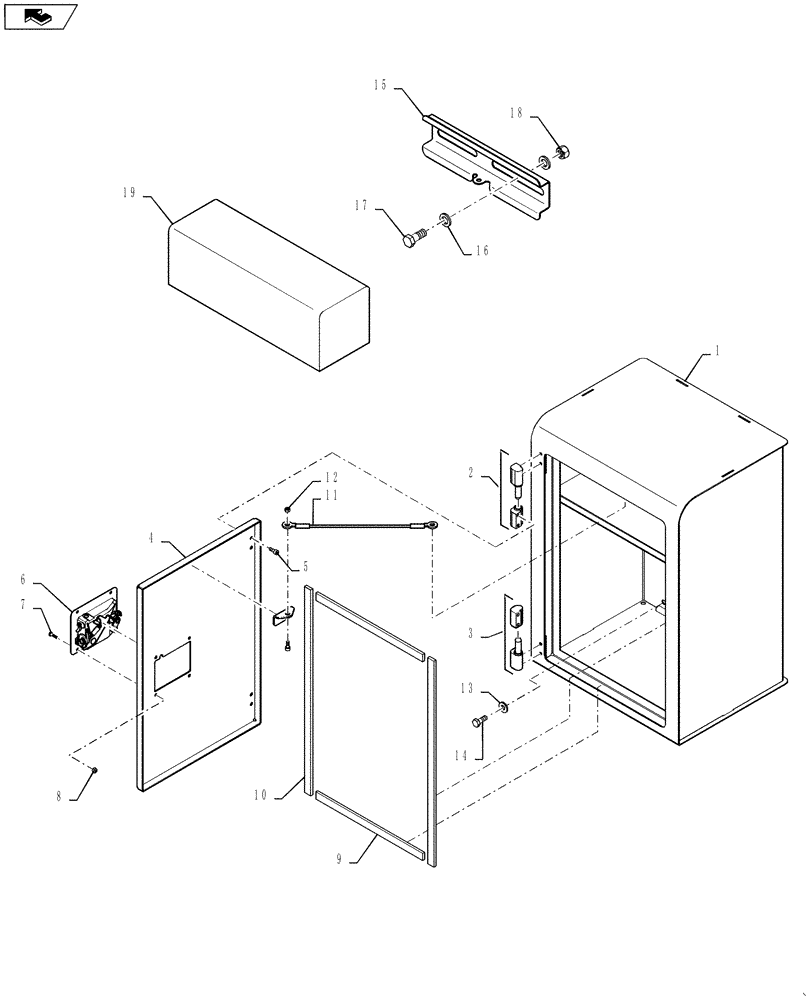

Запчасти Case IH TITAN 4530 (88.100.01) - STORAGE BOX (88) - ACCESSORIES

1

84478947

TOOL BOX

Storage

1шт.

2

BN306286

HINGE

Nylon, Type B

1шт.

3

BN306290

HINGE

Nylon, Type A

1шт.

4

84478955

COVER

Storage Box

1шт.

5

87343625

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

M6 x 16, CL8.8 DOR

10шт.

6

BN323944

LATCH

Paddle Handle

1шт.

7

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

8

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

9

84479352

WEATHERSTRIP

Storage Box Door, 326mm Long

2шт.

10

84479357

WEATHERSTRIP

Storage Box Door, 545mm Long

2шт.

11

F64526

CABLE

Door

1шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

13

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

14

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

15

A181434

SUPPORT

Mount, Toolbox

1шт.

16

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

4шт.

17

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

2шт.

18

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

19

A181436

TOOL BOX

Tractor Tools

1шт.
