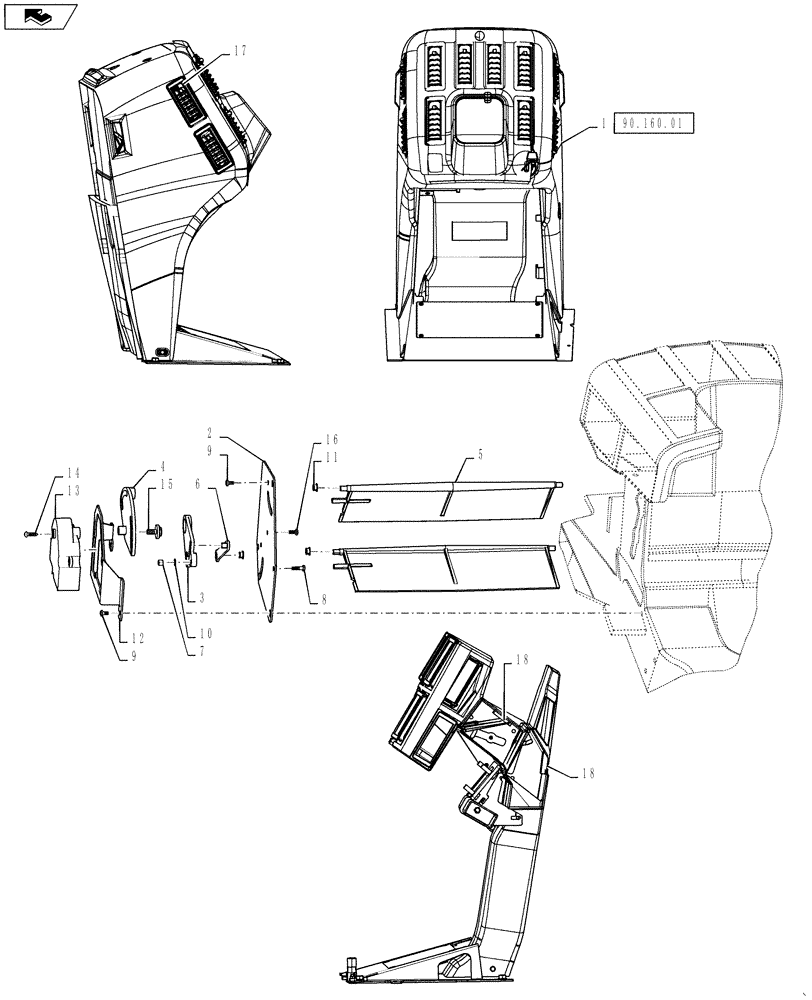

Запчасти Case IH TITAN 4530 (50.206.07) - HVAC ASSEMBLY, FRONT CONSOLE (50) - CAB CLIMATE CONTROL

1

87433098

AIR DUCT

1шт.

2

257059A2

PLATE

Support

1шт.

3

281138A2

GUIDE

Plate

1шт.

4

281139A1

GUIDE

Plate

1шт.

5

246476A1

VENT

Air Plenum Louver

2шт.

6

275601A1

LINK

Assy

1шт.

7

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

8

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

1шт.

9

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

3шт.

10

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

11

60-2416T1

NYLON BEARING,0.251" ID x 0.437" OD x 0.03, 0.14, 0.015"

3шт.

12

277438A1

BRACKET

Bracket

1шт.

13

275602A1

ACTUATOR

Motor

1шт.

14

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

3шт.

15

281140A1

WASHER

Shoulder

1шт.

16

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

1шт.

17

363882A1

VENT

Louver Assembly

10шт.

18

446687A1

FOAM

Louver Dampner

2шт.
