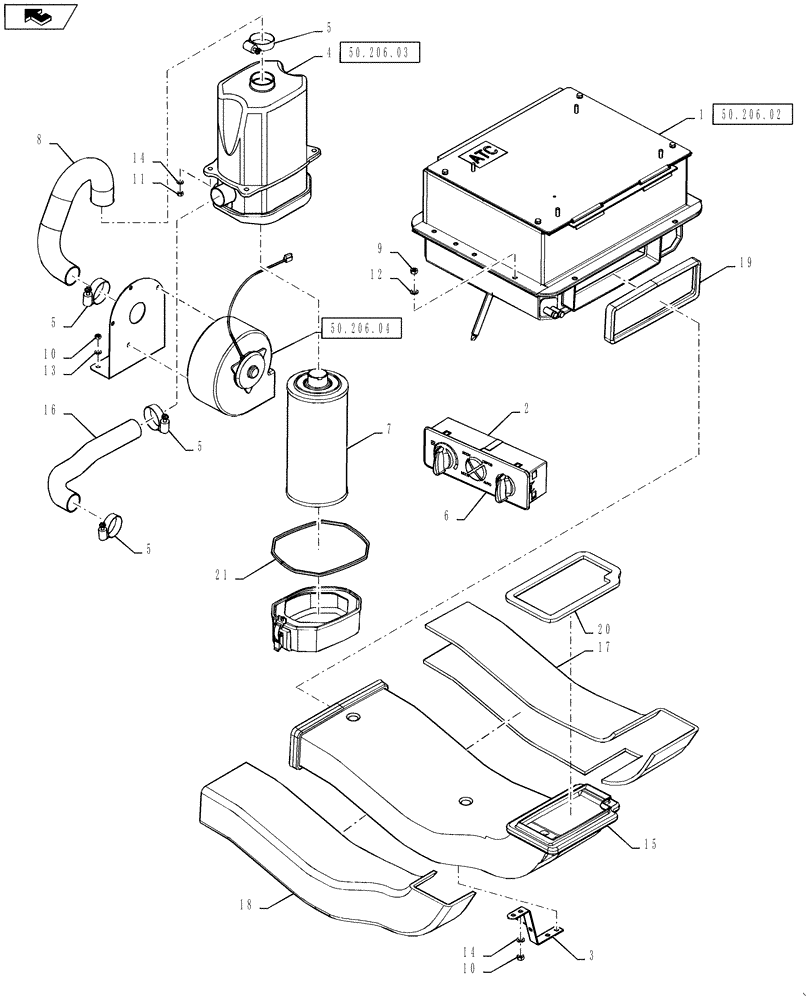

Запчасти Case IH TITAN 4530 (50.206.01) - CAB HVAC SYSTEM AND CONTROLS (50) - CAB CLIMATE CONTROL

1

47597103

AIR CONDITIONER

1шт.

2

87281122

SLEEVE

Mount

1шт.

3

384950A2

BRACKET

Duct

1шт.

4

87596194

HOUSING

Clean Air

1шт.

5

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

4шт.

6

84369353

DISPLAY

HVAC Cab Control

1шт.

7

87684088

CAB FILTER,CAB

Standard, Non Carbon

1шт.

7

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab Air, Charcoal

1шт.

8

307024A4

INTAKE AIR HOSE,57.00 mm ID x 390.00 mm

1шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

13

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

3шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

15

327851A1

DUCT

1шт.

16

87380071

HOSE,54.00 mm ID x 975.00 mm, SAE 20R4

Air Transfer

1шт.

17

328052A2

FOAM INSULATION

Duct

1шт.

18

328051A2

FOAM INSULATION

Duct

1шт.

19

359670A2

INSULATION,60mm W x 860mm L x 10mm Thk

Duct

1шт.

20

278967A3

GASKET

Duct To Cab Floor

1шт.

21

359586A1

SEAL

Filter Seal, Floor Panel

1шт.
