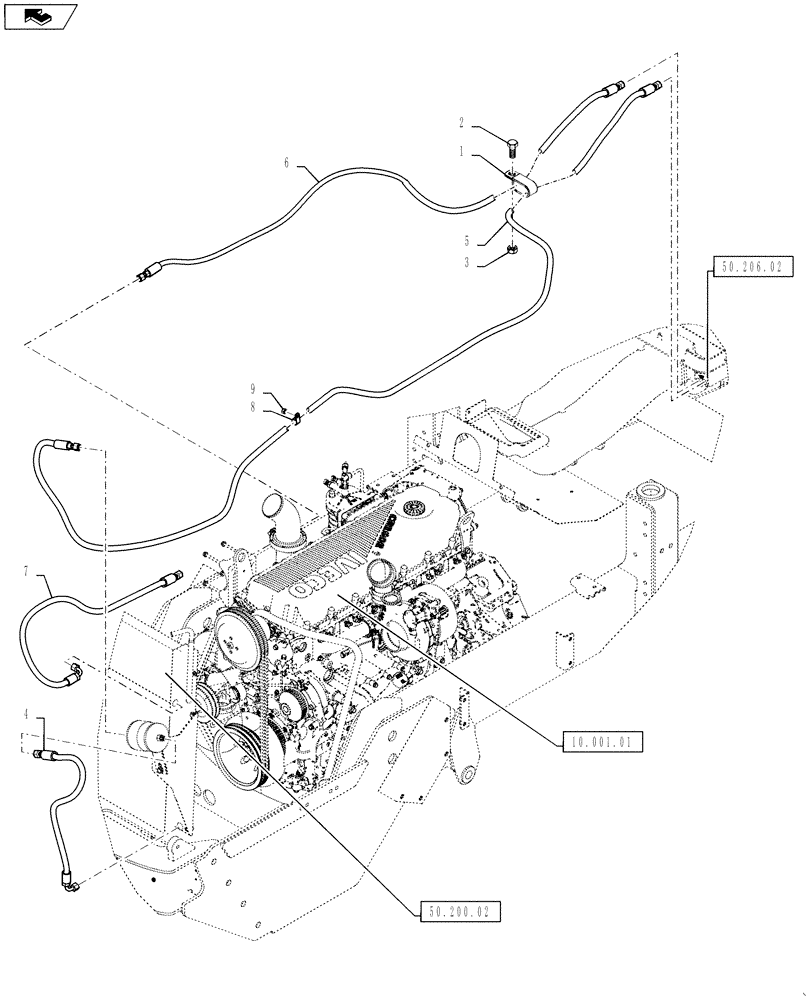

Запчасти Case IH TITAN 4530 (50.200.04) - AIR CONDITIONING LINES (50) - CAB CLIMATE CONTROL

1

R54363

CLAMP

15/16 Double Tube

1шт.

2

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

3

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

4

87266867

HOSE

Condensor To Dryer

1шт.

5

87266868

HOSE

Dryer To Cab

1шт.

6

87266869

HOSE

Cab To Compressor

1шт.

7

87266866

HOSE

Compressor To Condensor

1шт.

8

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

9

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.
