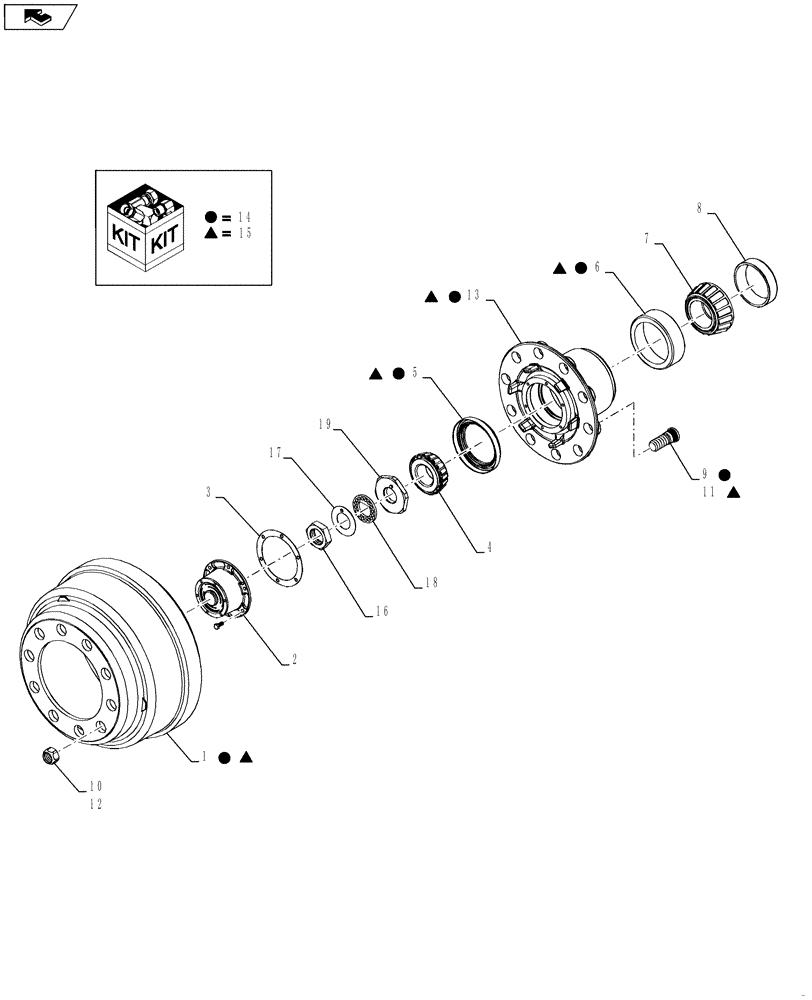

Запчасти Case IH TITAN 4530 (44.101.03) - FRONT AXLE HUB ASSEMBLY (44) - WHEELS

1

NSS

NOT SOLD SEPARAT

Drum, Included In Ref 14 and 15

2шт.

2

87267430

HUB CAP

2шт.

3

87267431

GASKET

Hub Cap

2шт.

4

87267432

ROLLER BEARING

Outer Bearing

2шт.

5

87267433

BEARING CUP

Outer Bearing, Included In Ref 14 and 15

2шт.

6

87267434

BEARING CUP

Inner Bearing, Included In Ref 14 and 15

2шт.

7

87267435

ROLLER BEARING

Inner Bearing

2шт.

8

87267436

SEAL

Wheel Hub

2шт.

9

84178258

STUD

Wheel, LH, Included In Ref 14

10шт.

10

87654450

WHEEL NUT

Lug, LH, 1-1/8" - 16, LH Thread, DOR

10шт.

11

84178256

STUD

Wheel, RH, Included In Ref 15

10шт.

12

87654448

WHEEL NUT

Lug, RH, 1-1/8" - 16, RH Thread, DOR

10шт.

13

NSS

NOT SOLD SEPARAT

Hub, Included In Ref 14 and 15

2шт.

14

84178193

HUB

Assembly, LH, Includes Ref 1, 5, 6, 9, and 13

1шт.

15

84178192

HUB

Assembly, RH, Includes Ref 1, 5, 6, 11, and 13

1шт.

16

87713434

BEARING LOCK NUT

Wheel Bearing, Outer

2шт.

17

87713435

LOCK WASHER

2шт.

18

87713450

LOCKING RING

2шт.

19

87713452

BEARING LOCK NUT

Wheel Bearing, Inner

2шт.

20

84183831

SHIELD

Dust, RH Front, Not Shown

1шт.

21

84183832

SHIELD

Dust, RH Rear, Not Shown

1шт.

22

84183834

SHIELD

Dust, LH Front, Not Shown

1шт.

23

84183835

SHIELD

Dust, LH Rear, Not Shown

1шт.
