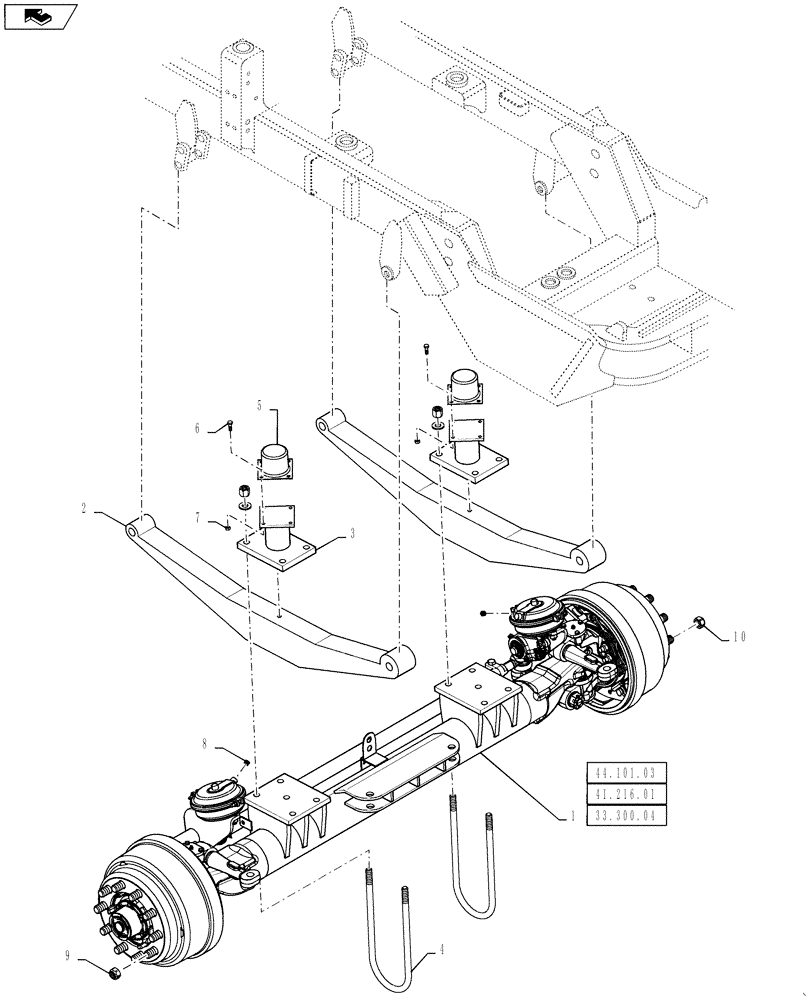

Запчасти Case IH TITAN 4530 (44.101.02) - FRONT AXLE AND LEAF SPRING (44) - WHEELS

1

87493493

AXLE

Front

1шт.

2

87270793

SPRING

Front Leaf, Upturned Eye

2шт.

3

87267450

MOUNTING PLATE

U-Bolt Base

2шт.

4

87267448

U-BOLT

7/8 X6-1/2X18-1/2

4шт.

5

BN5001054

BUMPER

Rubber

2шт.

6

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

8

217-435

PLUG,Hex Soc, 3/8" - 18 NPTF

2шт.

9

87654450

WHEEL NUT

Lug, LH, 1-1/8" - 16, LH Thread, DOR

10шт.

10

87654448

WHEEL NUT

Lug, RH, 1-1/8" - 16, RH Thread, DOR

10шт.
