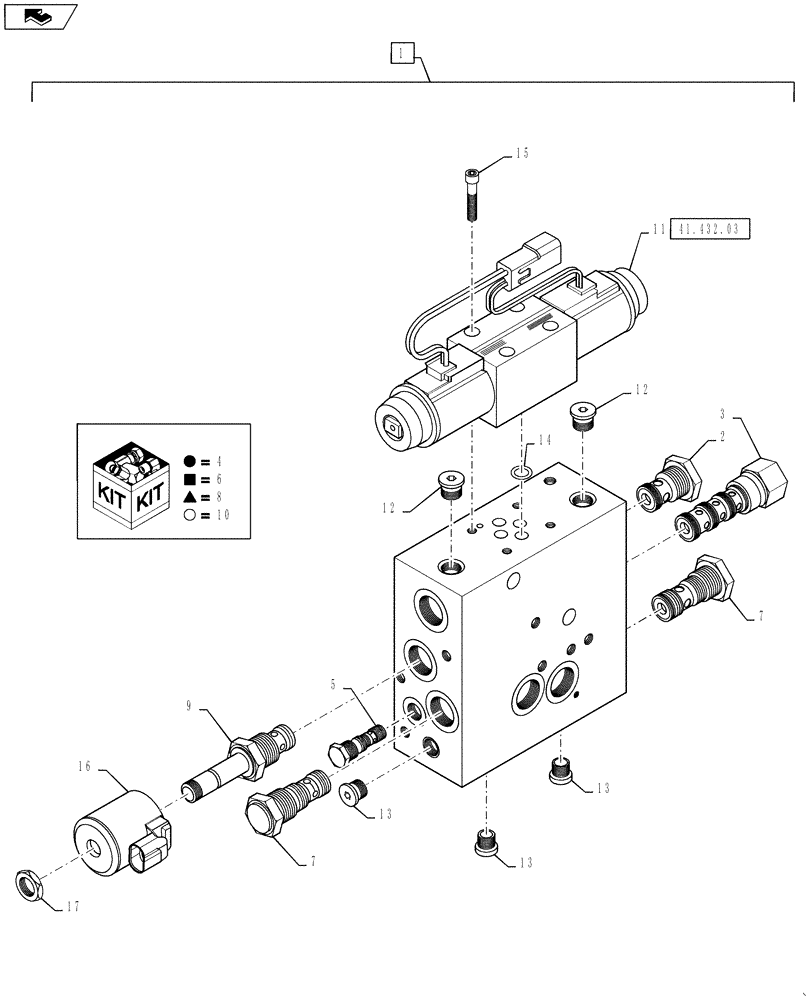

Запчасти Case IH TITAN 4530 (41.432.02) - AUTOGUIDANCE VALVE (41) - STEERING

1

84139307

VALVE

Auto Guidance, Includes Ref 2 - 17

1шт.

2

84243627

CHECK VALVE

Check Cartridge, 140 PSI

1шт.

3

87590351

VALVE

Pilot To Shift Cartridge, Includes Ref 4

1шт.

4

126056A1

SEAL KIT

Seal, Used On Ref 3, Not Shown

1шт.

5

87591593

VALVE

Shuttle Cartridge, Includes Ref 6

1шт.

6

87591595

SEAL KIT

Used On Ref 5, Not Shown

1шт.

7

87591596

VALVE

PO Check Cartridge, Includes Ref 8

2шт.

8

87024936

SEAL KIT

Used on Ref 7, One Kit Per Each Check Valve, Not Shown

1шт.

9

87026232

VALVE

2 Way, Normally Closed Solenoid Cartridge, Includes Ref 10

1шт.

10

86508168

SEAL KIT

Used On Ref 9, Not Shown

1шт.

11

84129314

VALVE

Proportional, 2 GPM

1шт.

See Fig 41.432.03 For Service Parts

1шт.

12

87035062

PLUG,Hex, 1/2"-20 ORB

2шт.

13

278548

PLUG,Hex, 7/16"-20 ORB

3шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

15

281060

HEX SOC SCREW,HSH, #10 - 24 x 1-1/4"

4шт.

16

87623908

COIL ASSY.

Cartridge, 12V, With Diode

1шт.

17

73113425

NUT

1/2"-20, Thin

1шт.
