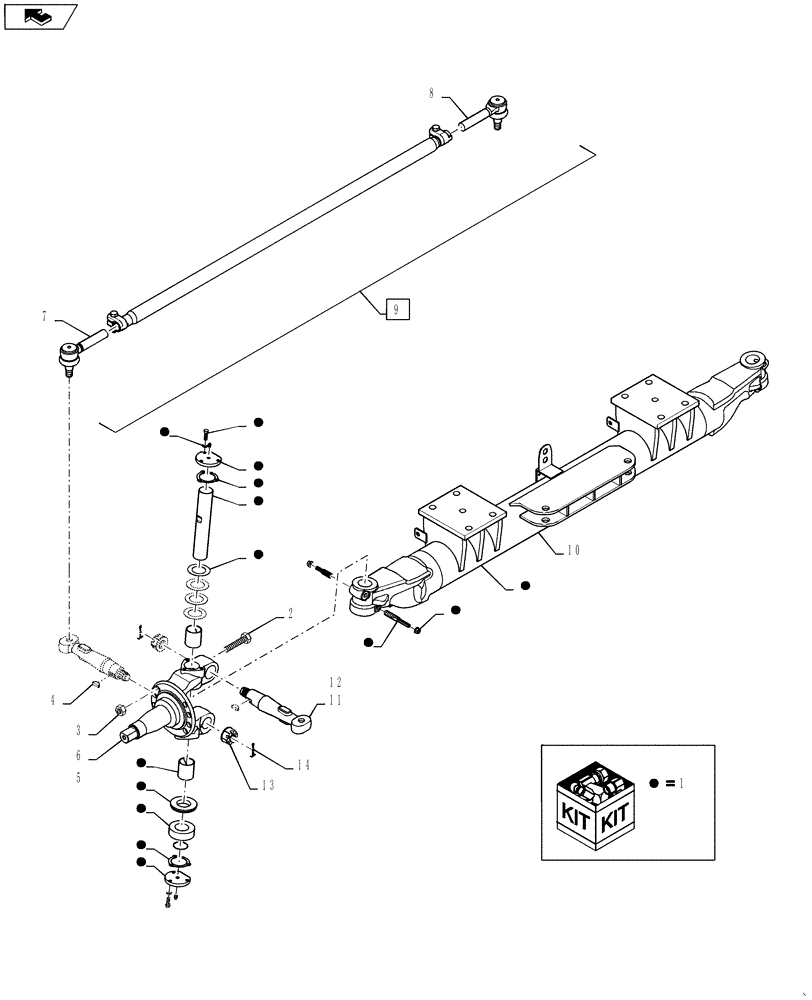

Запчасти Case IH TITAN 4530 (41.216.03) - FRONT AXLE KNUCKLE AND TIE ROD ASSEMBLIES (41) - STEERING

1

87267421

REPAIR KIT

Axle King Pin

1шт.

One Kit Used Per Axle

1шт.

2

87267422

BOLT

Stop

2шт.

3

87267423

JAM NUT

Jam

2шт.

4

87267424

KEY

Woodruff

4шт.

5

84353650

STEERING KNUCKLE

LH, Not Shown

1шт.

6

84353653

STEERING KNUCKLE

RH

1шт.

7

87267418

THREADED TIE-ROD

End, RH Thread

1шт.

8

87267417

THREADED TIE-ROD

End, LH Thread

1шт.

9

84180064

TIE-ROD

Assembly, Includes Ref 7 And 8

1шт.

10

84173852

FRONT AXLE

Weldment

1шт.

11

87713233

ARM

Tie Rod, RH, Front & Rear

2шт.

12

87713238

ARM

Tie Rod, LH, Front & Rear

2шт.

13

47399676

SLOTTED NUT

4шт.

14

86523852

COTTER PIN

4шт.
