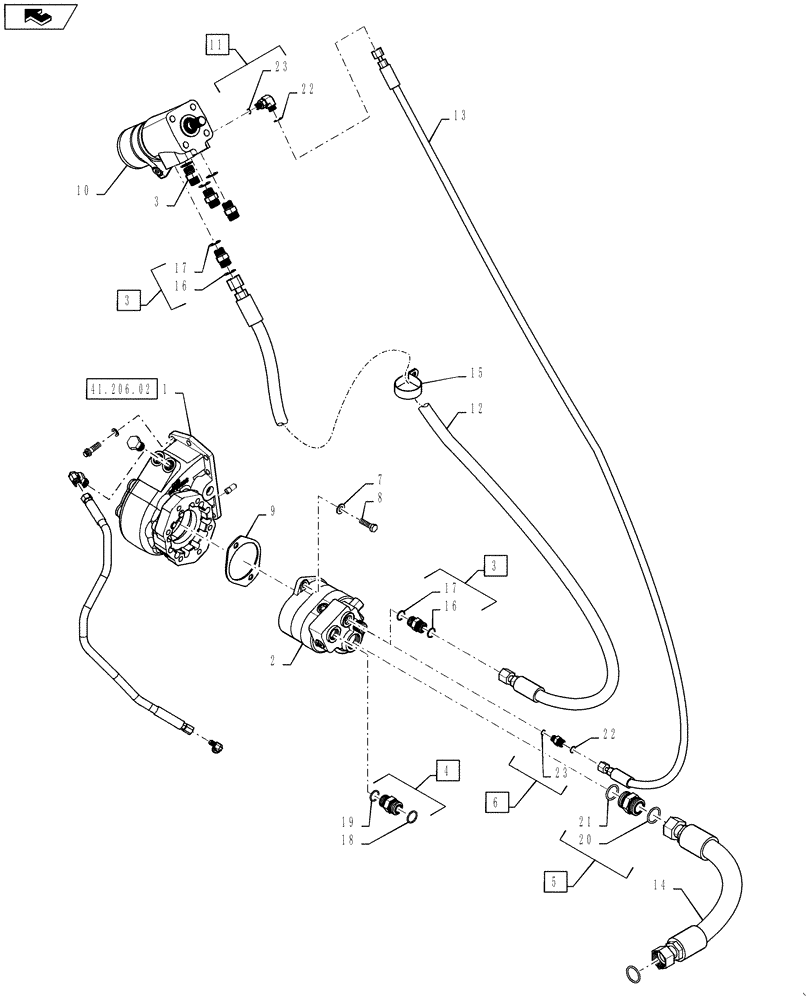

Запчасти Case IH TITAN 4530 (41.206.01) - STEERING PUMP ASSEMBLY (41) - STEERING

1

84141622

PTO

11 Tooth Spline, Continuous Operation, Steering, See 41.206.02 For Service Parts

1шт.

2

BN317546

PUMP

Gear, Steering

1шт.

BN317546R

REMAN-HYD PUMP

TITAN 4030, TITAN 4530 BOTH TIER 4 (2/12-)

1шт.

BN317546C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB, Includes Ref. 16, 17

5шт.

4

BN305057

FITTING

1-3/16 -12 ORFS x 7/8 -14 ORB, Includes Ref. 18, 19

1шт.

5

BN302659

FITTING

1-11/16 -12 ORFS x 1-5/16 -12 ORB, Includes Ref. 20, 21

1шт.

6

BN302640

FITTING

9/16 -18 ORFS x 7/16 -20 ORB, Includes Ref. 22, 23

1шт.

7

86625241

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

0.406 X 0.812 X 0.089 ZND

2шт.

8

461-33824

HEX SOC SCREW,3/8" - 16 x 1-1/2"

2шт.

9

BN69793

GASKET

2 Bolt, SAE "A" Pad

1шт.

10

410874A1

PUMP

Steering, Orbital

1шт.

10

396591A1

KIT

Seal, Steering Pump, Used on Ref 10

1шт.

11

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, ZND Includes Ref. 22, 23

1шт.

12

BN313281

HOSE

13/16 -16 Female ORFS Swivel x 13/16 -16 Female ORFS Swivel, 1/2" ID, 65" Long, Gear Pump To Steering Pump

1шт.

13

BN307825

HOSE ASSY.

9/16 -18 Female ORFS Swivel x 9/16 -18 Female ORFS Swivel, 1/4" ID, 69.5" Long, Gear Pump To Steering Pump

1шт.

14

87267322

HOSE

1-11/16 -12 Female ORFS Swivel x 1-11/16 -12 Female ORFS Swivel, 1.25" ID, 46" Long, Hydraulic Tank To Gear Pump

1шт.

15

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

5шт.

17

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

5шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

1шт.

19

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

1шт.

20

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1-11/16", ORFS

2шт.

21

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

1шт.

22

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

2шт.

23

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

2шт.
