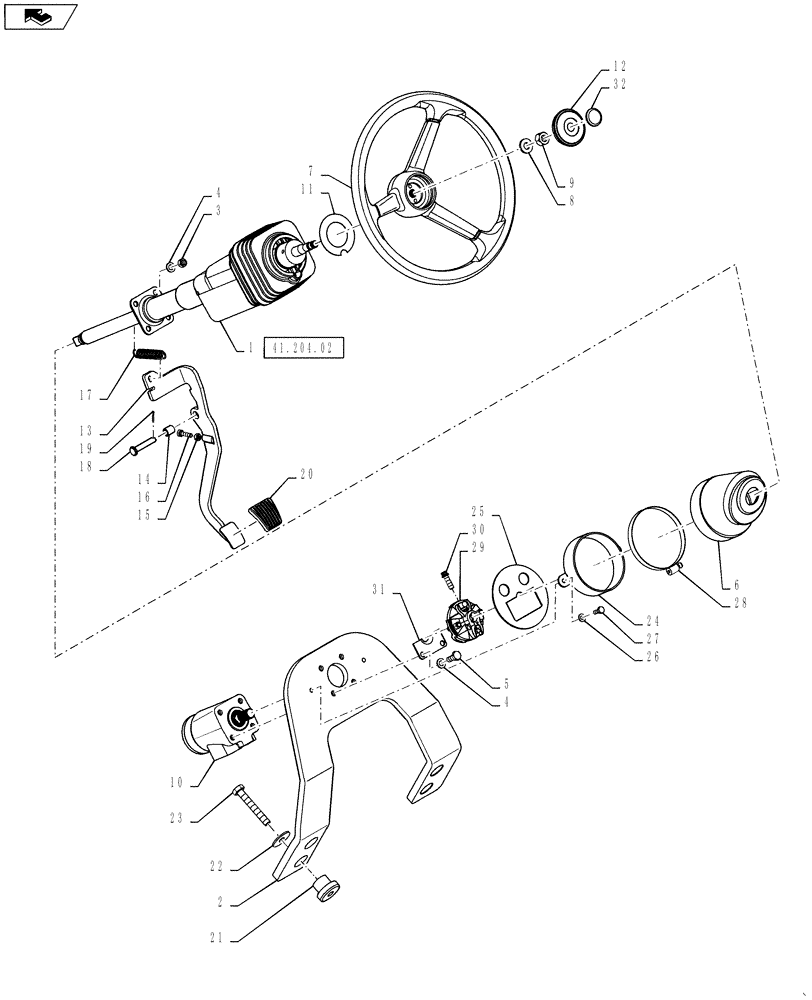

Запчасти Case IH TITAN 4530 (41.204.01) - STEERING COLUMN (41) - STEERING

1

86983411

STEERING COLUMN

Adjustable, See 41.204.02 For Service Parts

1шт.

2

343214A1

PLATE

Pump Support

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

6

373193A1

BOOT

Steering

1шт.

7

301200A1

STEERING WHEEL

Deluxe

1шт.

7

359033A1

STEERING WHEEL

Luxury, Leather, Not Shown

1шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

9

825-11414

NUT,M14 x 1.5, Cl 8

1шт.

10

410874A1

PUMP

Steering Orbital

1шт.

11

1977448C2

WASHER

Boot Support

1шт.

12

361024A3

CAP

Steering Wheel

1шт.

13

311748A3

PEDAL

W/ Steering Adjust

1шт.

14

282892A1

BUSHING,8mm ID x 9.6mm OD x 8mm L

Nylon

2шт.

15

829-1508

NUT,M8, Cl 10

1шт.

16

514-633

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

17

311812A1

SPRING

Extention

1шт.

18

729-845

CLEVIS PIN,M8 x 45

1шт.

19

733-2012

COTTER PIN,M2 x 12

1шт.

20

323657A1

PAD

Foot Release Pedal

1шт.

21

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

Front Mount

4шт.

22

495-81145

WASHER,13/32" x 1 3/4" x .120"

4шт.

23

627-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9, Full Thd

4шт.

24

373194A1

HOUSING

Boot Mounting

1шт.

25

86983451

SEAL

Closed Cell Foam

1шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

28

214-1580

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm, W/ Liner

1шт.

29

L100096

ISOLATOR

Steering Noise

1шт.

30

CAS7807271

SCREW

3/8 - 24

2шт.

31

450945A1

STOP DEVICE

Steering Pump Shaft

1шт.

32

87613502

INSERT

Case IH

1шт.
