Запчасти Case IH TITAN 4530 (36.200.03) - AUXILIARY TRANSMISSION PNEUMATIC SHIFTING GROUP (36) - PNEUMATIC SYSTEM

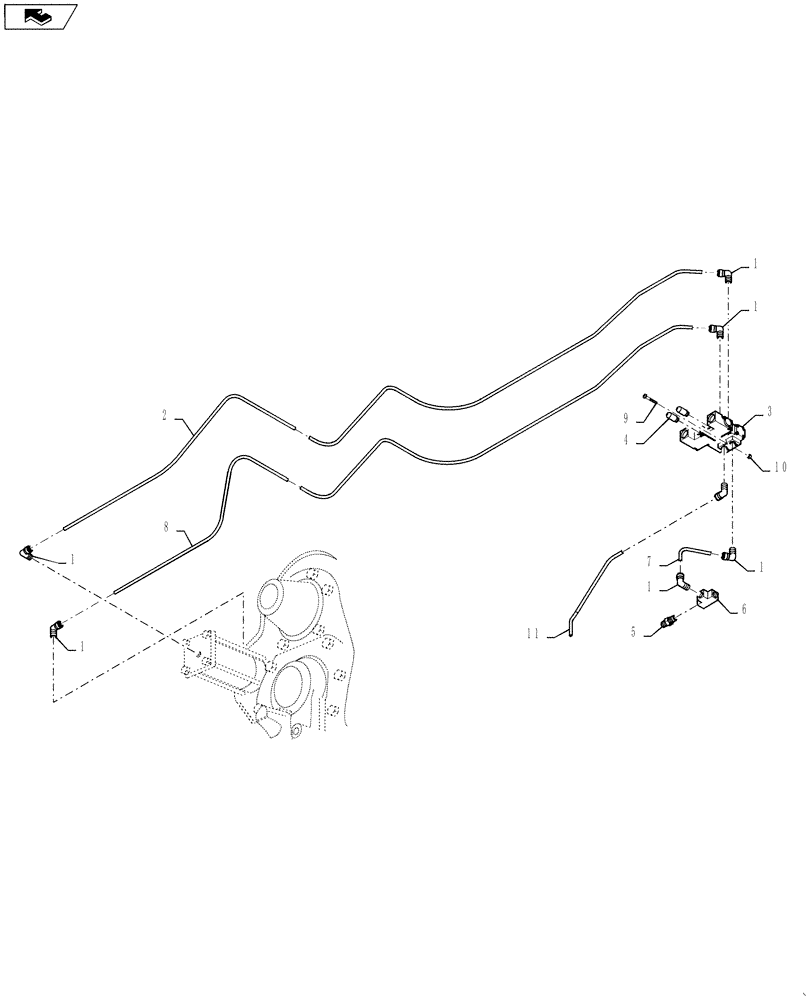

Схема запчастей Case IH TITAN 4530 - (36.200.03) - AUXILIARY TRANSMISSION PNEUMATIC SHIFTING GROUP (36) - PNEUMATIC SYSTEM
1
2
1
4
5
9
1
1
8
1
11
1
home
6
10
7
3

Артикул

Название

Примечание

Количество

1

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

7шт.

2

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, 1/4", Red, Bulk, Cut To 9'-7" Long

1шт.

3

87271289

PNEUMATIC VALVE

With Harness

1шт.

See Fig 55.560.01 For Service Parts

1шт.

4

BN23041

MUFFLER

Air Valve, 1/8" NPT

2шт.

5

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

1шт.

6

217-1161

TEE,1/4"-18 Female

1шт.

7

BN2292089

AIR INTAKE TUBE

Synflex 1/4" Black, Bulk, Cut To 3-7/8" Long

1шт.

8

BN2393054

TUBE,1/4" X 16' BULK, SAE J844, BLUE

Air, 1/4", Blue, Bulk, Cut To 9'-4" Long

1шт.

9

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 x 1-1/4", BSH, SST

2шт.

10

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

11

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, 1/4", Yellow, Bulk, Cut To 2'-6" Long

1шт.

Выбрано товаров: 12
