Запчасти Case IH TITAN 4530 (36.100.08) - REMOTE AIR COUPLER (36) - PNEUMATIC SYSTEM

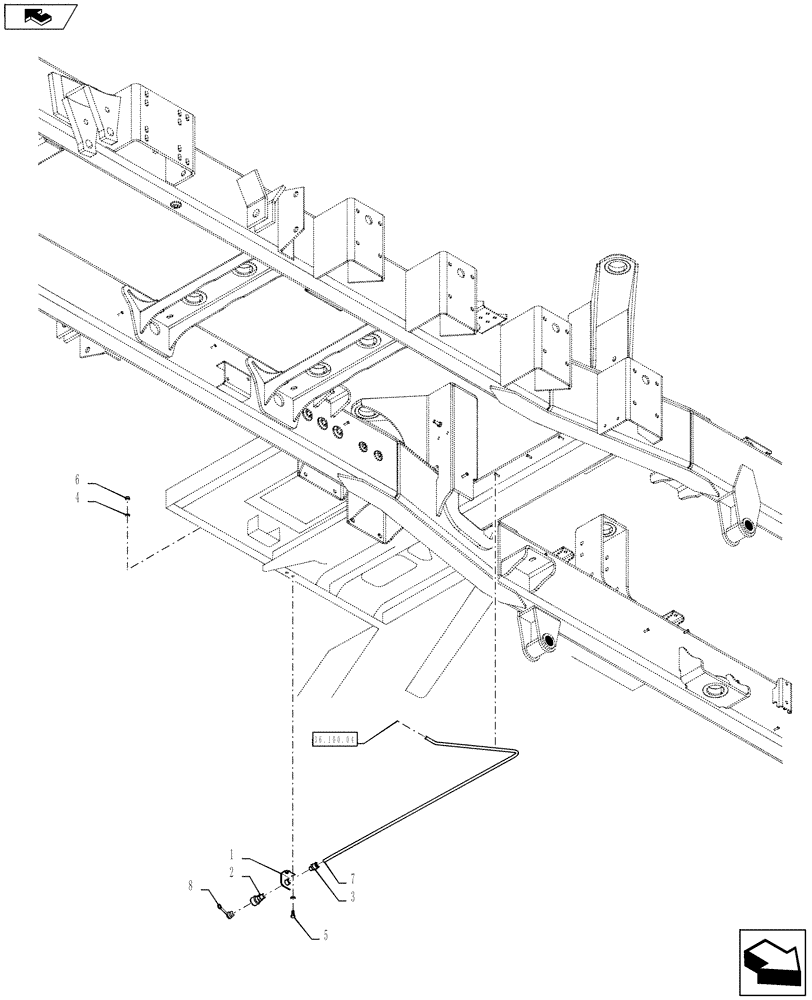

Схема запчастей Case IH TITAN 4530 - (36.100.08) - REMOTE AIR COUPLER (36) - PNEUMATIC SYSTEM
2
1
home
3
36.100.04
4
5
8
7
6

Артикул

Название

Примечание

Количество

1

BN324300

PLATE

Remote Air Coupler

1шт.

2

BN2393326

COUPLING

1/4" Female Body, Will Mate With Industrial Interchange 1/4" Male Body

1шт.

3

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

4

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 MM, HDN, DOR

4шт.

5

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

7

87266799

TUBE,0.375" DIA

3/8" x 62", Black

1шт.

8

87267960

COVER

Dust, Air Chuck

1шт.

Выбрано товаров: 8
