(07-012) - SHIFT GROUP, 2-SPEED, AIR "SERIAL # 6700 AND LATER"

Запчасти Case IH TITAN 4520 (07-012) - SHIFT GROUP, 2-SPEED, AIR "SERIAL # 6700 AND LATER" Pneumatics

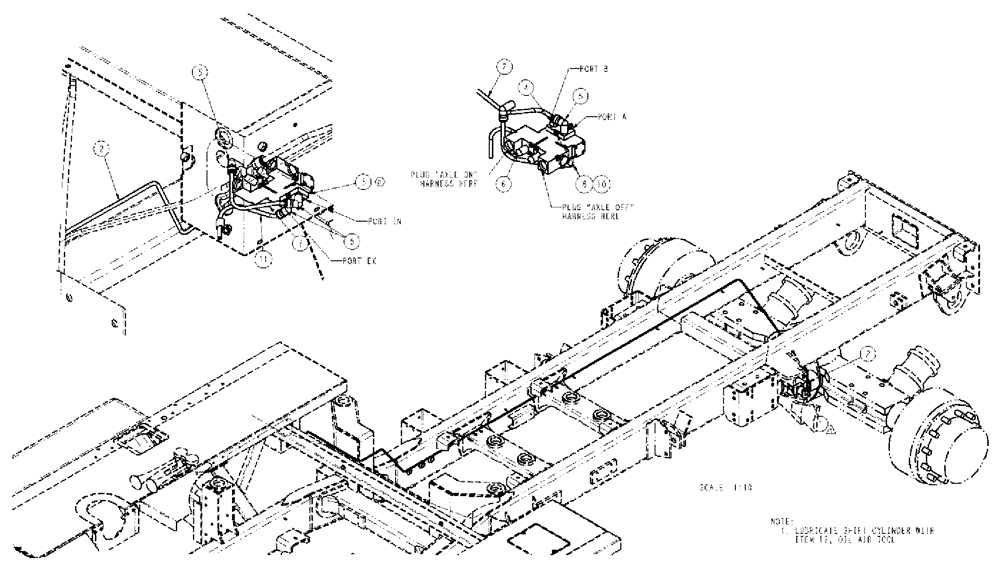

Схема запчастей Case IH TITAN 4520 - (07-012) - SHIFT GROUP, 2-SPEED, AIR "SERIAL # 6700 AND LATER" Pneumatics
2
10
4
3
5
5
5
11
2
8
6
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN2399401

ADAPTER

Male, 1/4" Tube

1шт.

2

87266830

TUBE,0.25" DIA

Air 1/4" x 214", Green

1шт.

3

87271289

PNEUMATIC VALVE

Air, With Harness

1шт.

See Fig. 07-019

1шт.

4

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

5

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

6

BN23041

MUFFLER

Air Valve 1/8" NPT

2шт.

7

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

Cut 8.5" from bulk roll

1шт.

8

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

2шт.

10

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

11

87269627

TUBE,0.25" DIA x 7.25" L

Air 1/4" x 7.25", Yellow

1шт.

12

NS

NOT SERVICED

AIR TOOL

1шт.
