(07-006) - QUICK RELEASE, FRONT BRAKE

Запчасти Case IH TITAN 4520 (07-006) - QUICK RELEASE, FRONT BRAKE Pneumatics

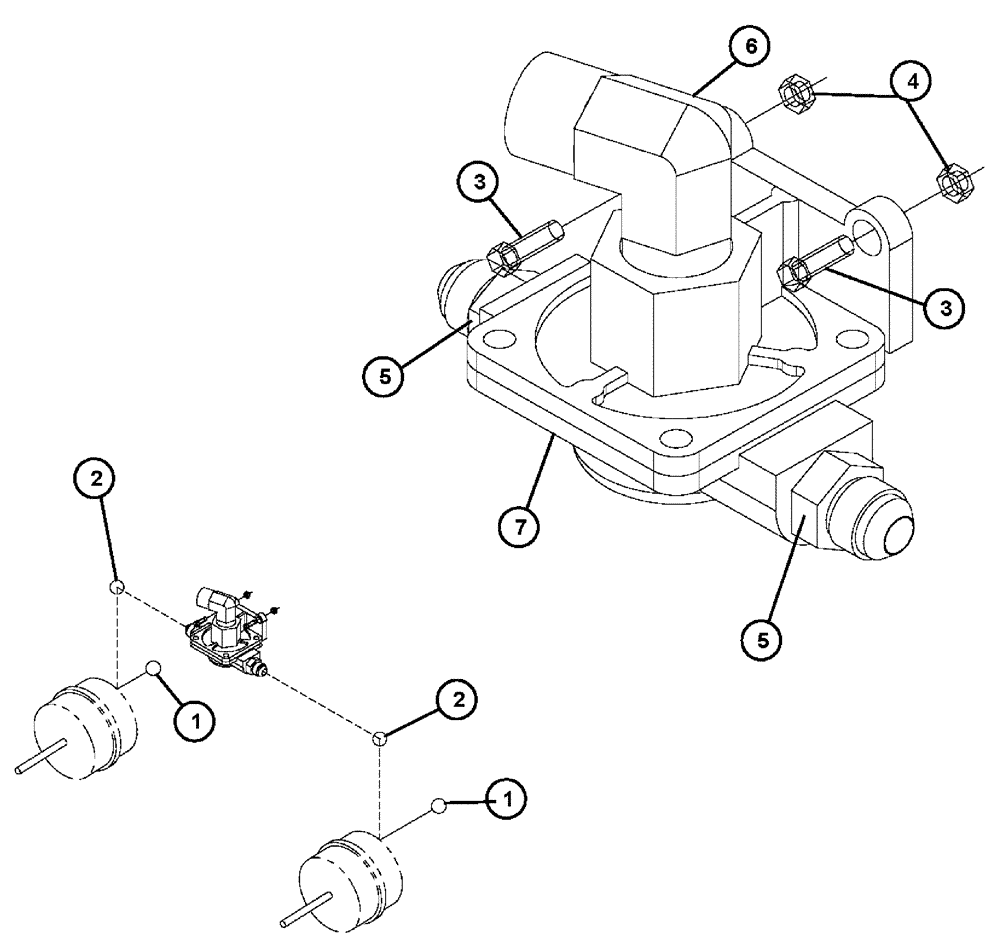

Схема запчастей Case IH TITAN 4520 - (07-006) - QUICK RELEASE, FRONT BRAKE Pneumatics
3
2
7
1
3
6
4
5
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

NSS

NOT SOLD SEPARAT

QUICK RELEASE, FRONT BRAKE (INCLUDES REF. 5, 6, AND 7)

1шт.

1

BN2290528

FITTING

2103-6-6

2шт.

2

BN2390661

FITTING

2353-6-6

2шт.

3

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

M8-1.25 X 30, HH, 10.9

2шт.

4

BN304315

NUT

M8-1.25, FLN, 10.9

2шт.

5

BN2290119

FITTING

0103-6-6

2шт.

6

BN2290508

ELBOW

2103-8-8

1шт.

7

BN2298276

PNEUMATIC VALVE

QUICK RELEASE

1шт.
