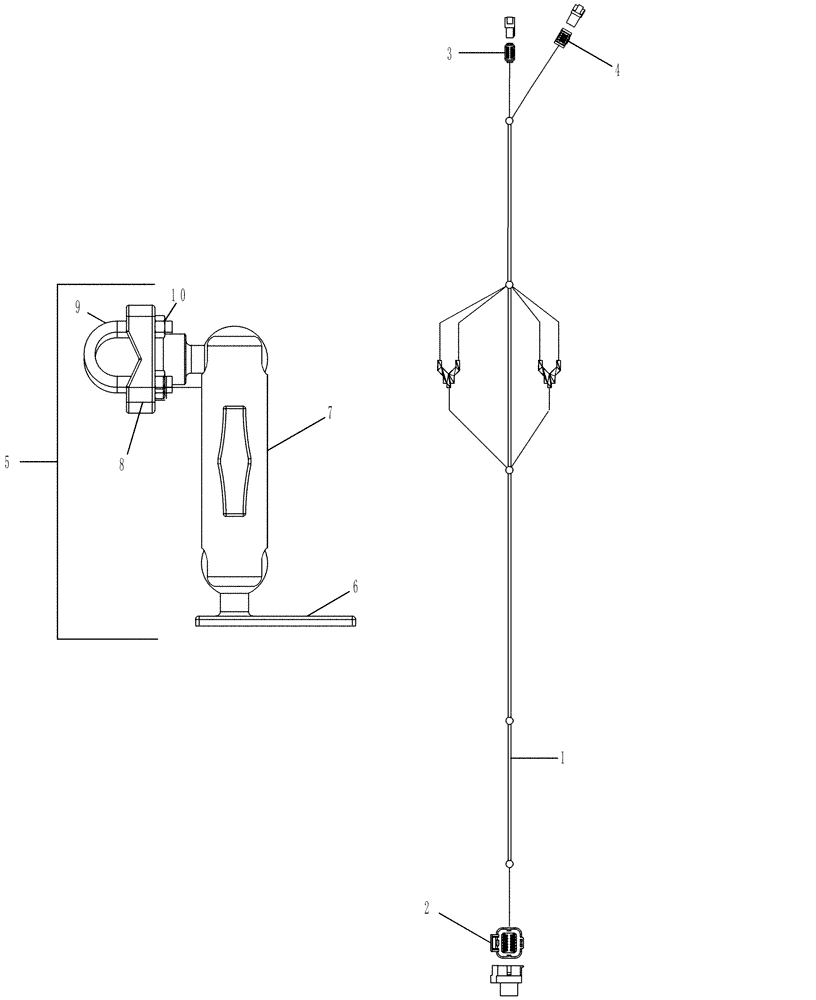

Запчасти Case IH TITAN 4520 (10-027) - AFS MONITOR READY PACKAGE Options

1

87566059

HARNESS

Display

1шт.

2

87410948

CONTACT HOUSING,Female, 26 Pole

To Display, 403

1шт.

3

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

To Cab Harness, 377F

1шт.

4

225411C1

CONNECTOR, ELEC

CONNECTOR To Cab Harness, 336F

1шт.

5

87386396

MOUNT

Mount Color Display, Includes Ref 6 - 10

1шт.

6

87386398

SUPPORTING ARM

1шт.

7

87284257

ARM

1шт.

8

87284259

PLATE

1шт.

9

86632541

U-BOLT,1/4” - 20, 1.75” L x 1” W

2шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.
