Запчасти Case IH TITAN 4520 (10-026) - ACCUGUIDE ELECTRIC GROUP, CAB Options

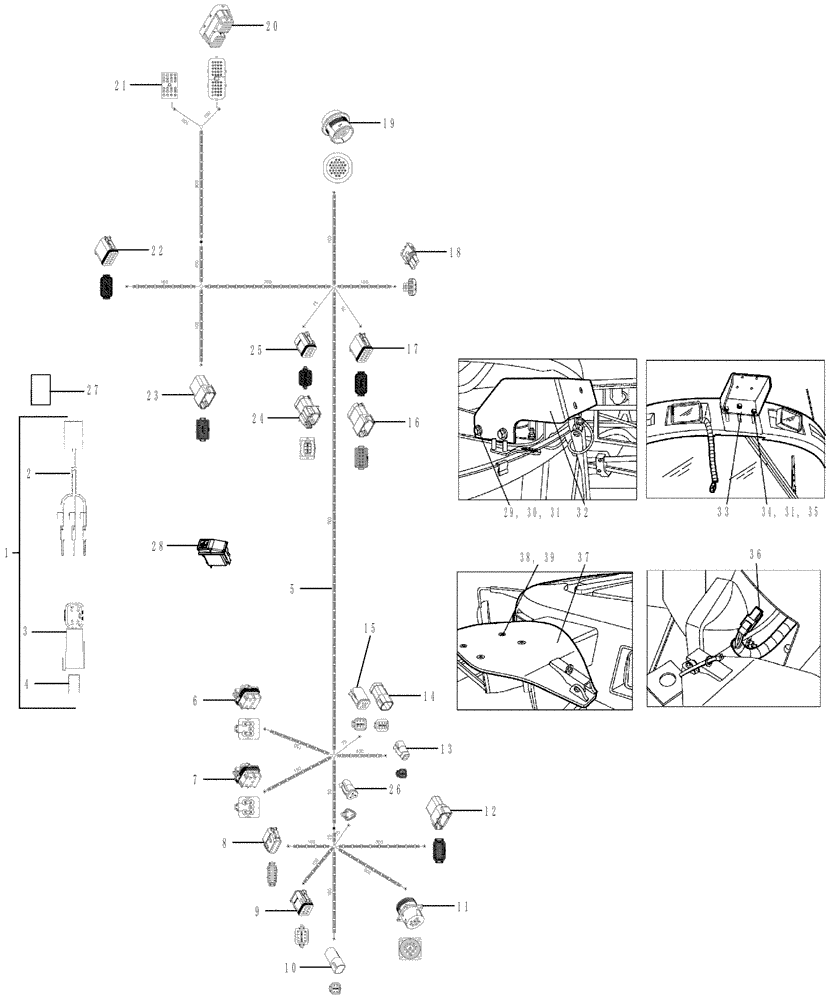

Схема запчастей Case IH TITAN 4520 - (10-026) - ACCUGUIDE ELECTRIC GROUP, CAB Options
24
5
7
4
12
21
37
14
3
22
26
2
36
32
1
18
25
19
17
11
27
8
23
6
10
28
13
9
20
33
15
16

Артикул

Название

Примечание

Количество

1

87646096

SWITCH ASSY

Remote Foot, Includes Ref 2 - 4

1шт.

2

87649886

KIT

Switch Foot Remote

1шт.

3

277905A1

ELEC CONNECTOR,Male, 4 Pin

1шт.

4

279795A1

STOP LOCK

1шт.

5

84154702

HARNESS

ACCUGUIDE Cab, Includes Ref 6 - 25

1шт.

6

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

LH Steering Relay, J704

1шт.

7

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

RH Steering Relay, J705

1шт.

8

87700156

CONTACT HOUSING,Female, 12 Pole

Ag Display2, J706

1шт.

9

87708153

Ag Display1, J707

1шт.

10

87694154

CONTACT HOUSING,Male, 4 Pole

Roading, J708

1шт.

11

87516075

MULTIPOLE CONNECTOR,Male, 9 Pole

Service Port, P709

1шт.

12

87700155

ELEC CONNECTOR,Female, 12 Cavities

Diagnostic, J710

1шт.

13

87696138

ELEC CONNECTOR

Remote Engage, P711

1шт.

14

87587623

CONTACT HOUSING

6Way Splice, J715

1шт.

15

87694112

ELEC CONNECTOR,Female, 6 Pole

Splice,P715

1шт.

16

87269436

SOCKET/RECEPTACLE

12Way Splice, J713

1шт.

17

87695592

CONTACT HOUSING,Female, 12 Pole

Splice, P713

1шт.

18

87644909

WIRE CONNECTOR,Female, 3 Pins

Power, P712

1шт.

19

87696944

ELEC CONNECTOR,Female, 31 Pole

Accuguide, BH

1шт.

20

87706495

WIRE CONNECTOR

NAV 1, P700

1шт.

21

84146326

WIRE CONNECTOR

NAV 2, P701

1шт.

22

87695592

CONTACT HOUSING,Female, 12 Pole

Seat, P702

1шт.

23

87695724

ELEC CONNECTOR,Male, 12 Pole

Seat, J703

1шт.

24

87587627

CONTACT HOUSING

3x5 Splice, J714

1шт.

25

87700325

ELEC CONNECTOR,Female, 8 Cavities

Splice, P714

1шт.

26

87695580

ELEC CONNECTOR,Female, 3 Pole

Terminator, P716

1шт.

27

87646099

FASTENER

2шт.

28

87711789

AUTO GUIDANCE DISENG

1шт.

29

87342008

BOLT,Hex, M10 x 20mm, Cl 10.9

M10x20,10.9 DOR

4шт.

30

87344003

NUT,M10-1.5, 10, DOR

4шт.

31

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11x21x2MM

7шт.

32

87304763

MOUNTING PARTS

Antenna

1шт.

33

87304767

BRACKET

Antenna Mounting

1шт.

34

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

3шт.

35

87304771

SPACER

Auti-Guidance Antenna

3шт.

36

87544759

HARNESS

GPS Antenna Receiver

1шт.

37

87528080

BASE PLATE

Antenna Mounting

1шт.

38

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

39

374897

SCREW,Phil Flat Hd, M8 x 1.25 x 25mm, Cl 4.8

4шт.

Выбрано товаров: 39
