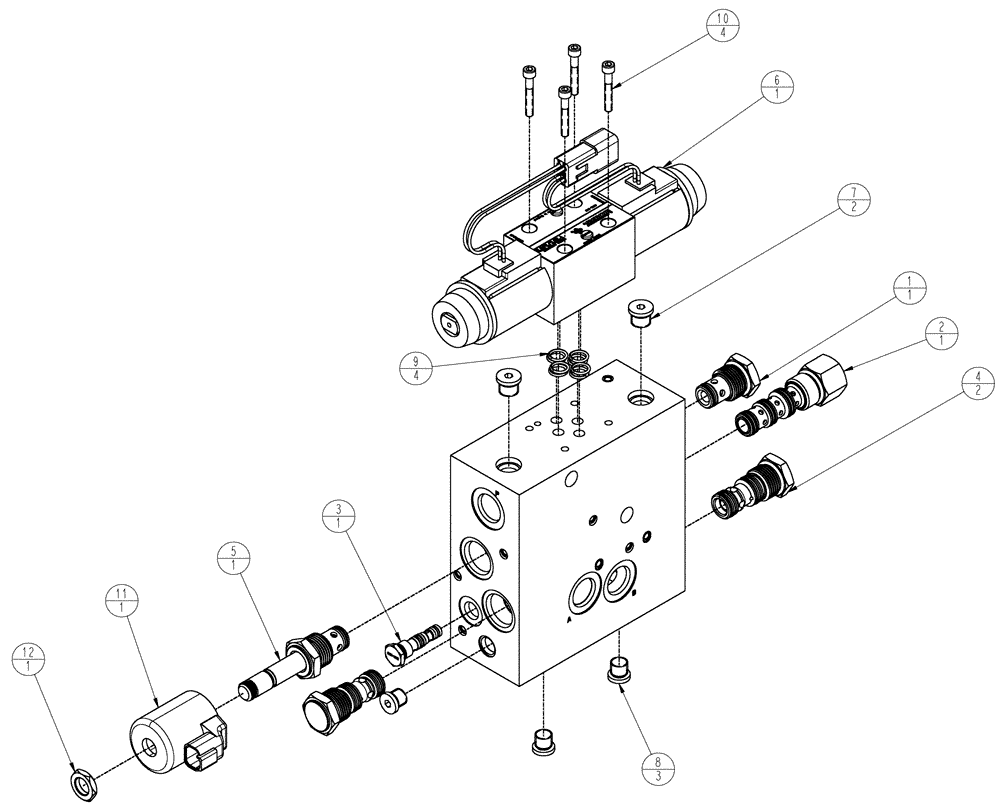

Запчасти Case IH TITAN 4520 (10-024) - VALVE, AUTOGUIDANCE Options

1

84243627

CHECK VALVE

CHECK CARTRIDGE

1шт.

2

87590351

VALVE

PILOT TO SHIFT CARTRIDGE

1шт.

3

87591593

VALVE

SHUTTLE CARTRIDGE

1шт.

4

87591596

VALVE

P.O. CHECK CARTRIDGE

2шт.

5

87026232

VALVE

Aassembly NC 2 Way

1шт.

6

84129314

VALVE

Proportional, 2 gpm

1шт.

See Fig. 10-025

1шт.

7

87035062

PLUG,Hex, 1/2"-20 ORB

2шт.

8

278548

PLUG,Hex, 7/16"-20 ORB

3шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

10

281060

HEX SOC SCREW,HSH, #10 - 24 x 1-1/4"

4шт.

11

87623908

COIL ASSY.

CARTRIDGE 12V WITH DIODE

1шт.

12

73113425

NUT

1/2"-20, Thin

1шт.
