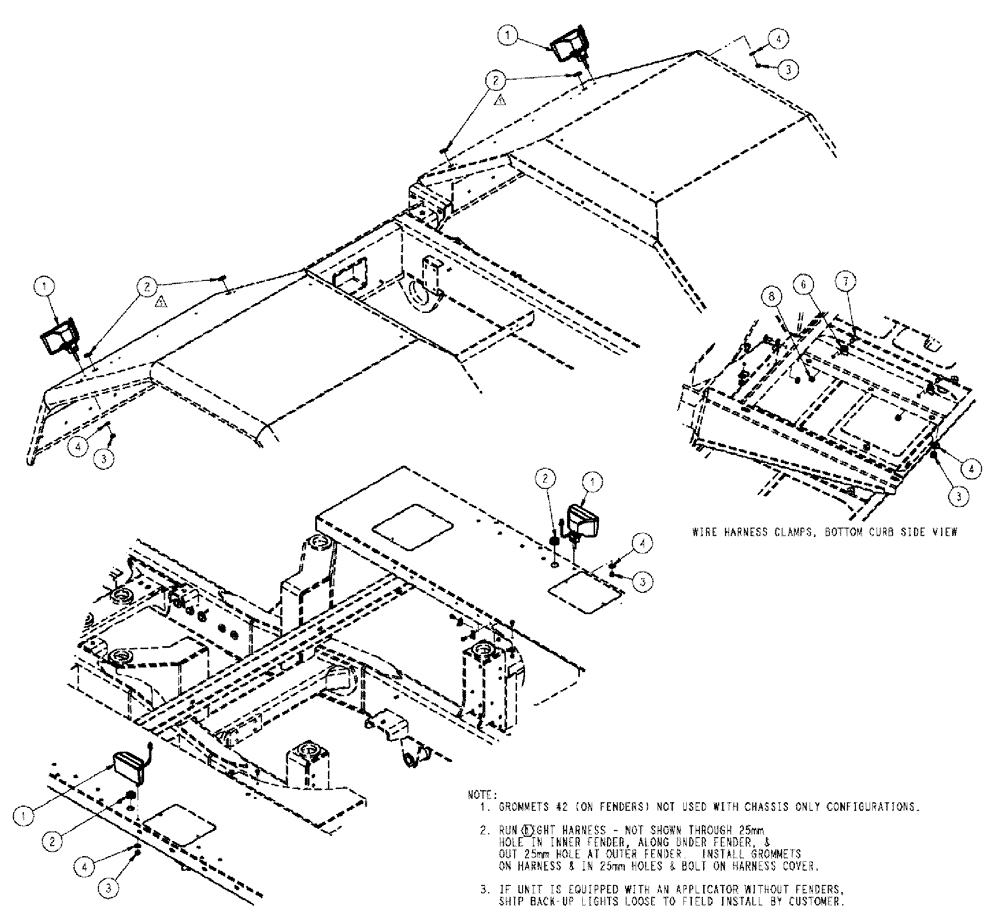

Запчасти Case IH TITAN 4520 (10-011) - LIGHT GROUP, AUX/ BACK UP Options

1

87658615

LAMP

Flood, Assembly

4шт.

See Fig. 10-012

1шт.

1a

92242C2

BULB,H3, 12V, 35W

H3-35W, 12V

4шт.

Service Parts For Ref. 1

1шт.

2

BN85855

GROMMET

2870 (7/8" Hole)

6шт.

6

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

7

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

8шт.

8

86528579

NUT,M8 x 1.25

8шт.
