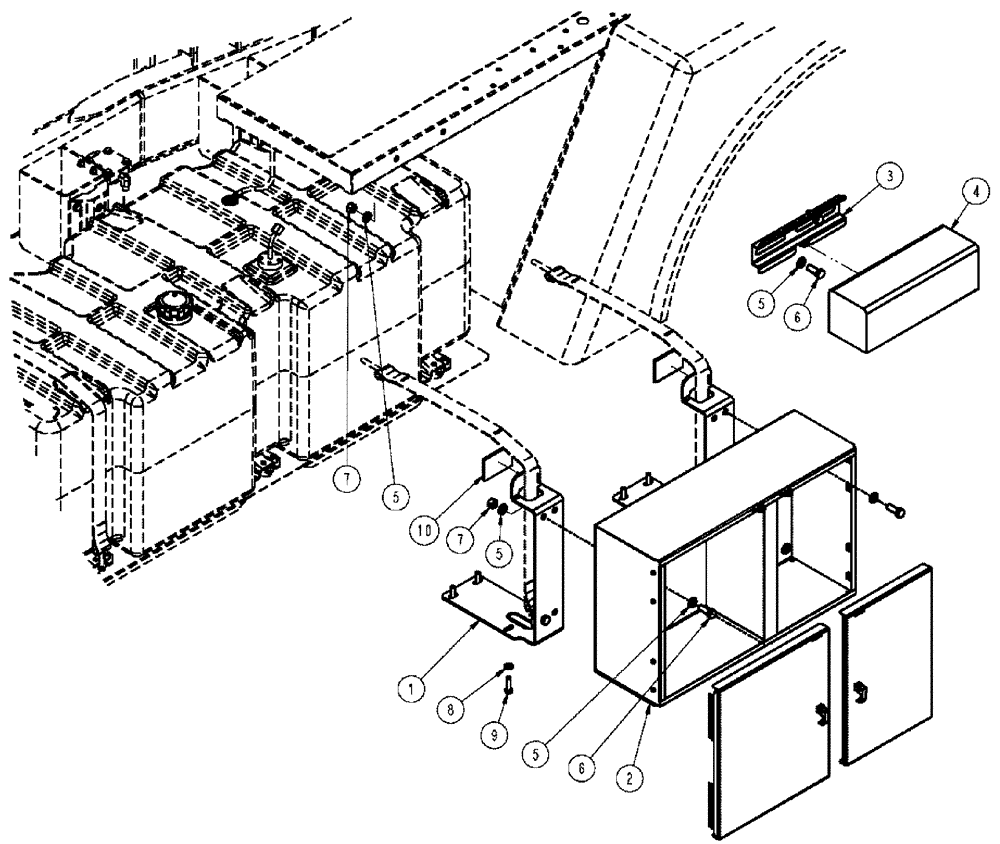

Запчасти Case IH TITAN 4520 (04-028) - TOOLBOX, GROUP Frame & Suspension

1

BN323200

MOUNTING PLATE

TOOLBOX MOUNT

2шт.

2

NS

NOT SERVICED

Group, Toolbox

1шт.

See Fig. 04-029

1шт.

3

A181434

SUPPORT

Mount, Toolbox

1шт.

4

A181436

TOOL BOX

Steel

1шт.

5

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

12шт.

6

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

6шт.

7

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

6шт.

8

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

9

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

8шт.

10

NS

NOT SERVICED

Pad, Toolbox Bracket

2шт.

11

BN54039

ADHESIVE

Spray 18 oz

1шт.
