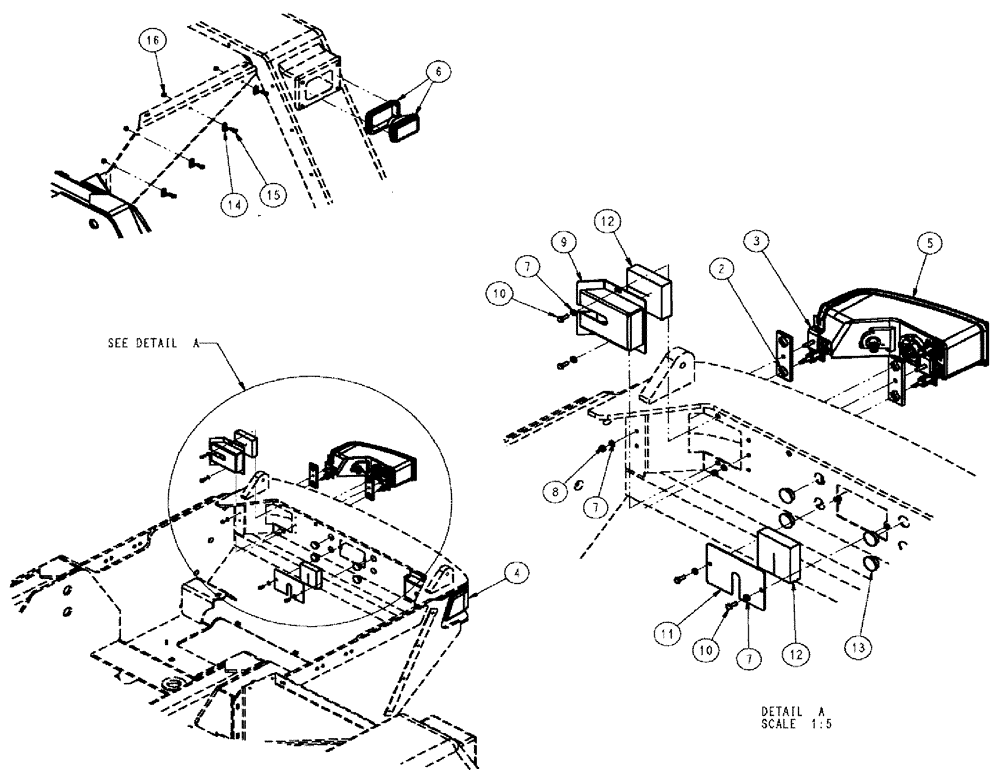

Запчасти Case IH TITAN 4520 (04-025) - LIGHT GROUP Frame & Suspension

2

391666A1

SUPPORT

EUR light

4шт.

3

391709A1

SUPPORT

mount assembly, headlight

4шт.

4

232448A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

right, RH dip roe

1шт.

5

232449A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

left, RH dip roe

1шт.

6

86986699

LIGHT

PARK/TURN

2шт.

7

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

8шт.

8

86528579

NUT,M8 x 1.25

8шт.

9

87267061

COVER ASSY

HEADLIGHT

2шт.

10

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

11

87267209

COVER

FIELDLIGHT ACCESS

1шт.

12

87267208

SEAL

foam, headlight

3шт.

13

353-426

PLUG,1" Hole, Nylon

4шт.

14

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

15

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

16

9991588

NUT,M8 x 1.25, Cl 8

8шт.
