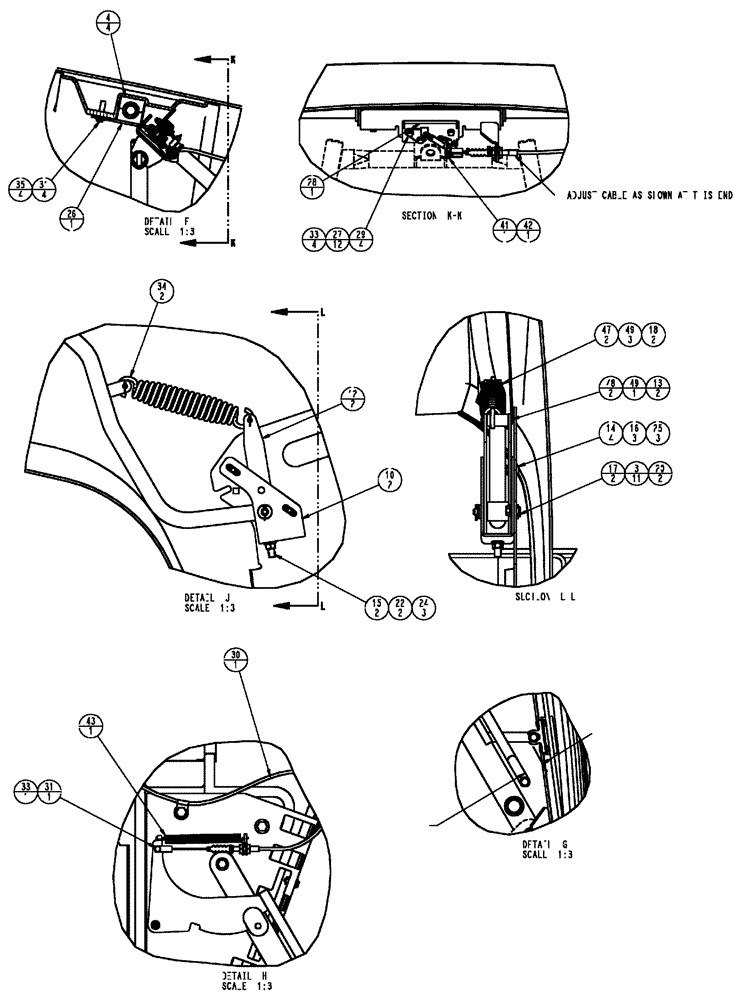

Запчасти Case IH TITAN 4520 (04-022[03]) - HOOD ASSEMBLY, HOOD/GRILLE - SERIAL #22152 AND LATER Frame & Suspension

1

343391A1

HOOD

assembly, with structures

1шт.

2

87564142

GRILLE

STX Large Frame

1шт.

See Fig. 04-023

1шт.

3

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

12шт.

4

314842A3

BEARING

SLEEVE

4шт.

5

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

1шт.

6

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

6шт.

7

315197A4

ARM ASSY.

front hood

1шт.

8

339543A2

ARM

rear hood lift

1шт.

9

84140971

SUPPORT

W RADIATOR RH

1шт.

10

339551A1

BRACKET

ADJUSTABLE BASE

2шт.

11

84140970

SUPPORT

W RADIATOR LH

1шт.

12

339547A1

ADJUSTABLE CLEVIS

2шт.

13

313992A1

SPOOL

SPRING

2шт.

14

87342171

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

RD HD SH M10X20 8.8

4шт.

15

86981675

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

M12 X 40 8.8

2шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

17

87344037

CLEVIS PIN,M12 x 90

2шт.

18

320429A1

SPOOL

small spring

2шт.

19

316937A1

SPACER,12.2mm ID x 19.1mm OD x 14mm Thk

hood linkage

2шт.

20

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

21

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10-1.5 X 20, HH, 8.8, DOR

2шт.

22

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

14шт.

23

86980426

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

24

87344210

NUT

Hex, M12 CL10.9

4шт.

25

87344209

NUT,M10 x 1.5, Cl 10, DOR

4шт.

26

445932A1

PLATE

HOOD LATCH

1шт.

27

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

12шт.

28

87550202

LATCH

HOOD, Start Year: 01-OCT-08

2шт.

Striker Bolt # 86980412 (Not Shown)

1шт.

28a

318159A1

LATCH

HOOD, Years: -01-OCT-08

2шт.

29

86980364

BOLT,Hex, M6 - 1 x 40mm, Cl 8.8, DOR

M6-1 X 40, HH, 8.8 DOR

4шт.

30

443297A1

CABLE,2363mm L

1шт.

31

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

13шт.

32

325525A3

ARM

HOOD SAFETY

1шт.

33

353308

NUT,M6 x 1.0, Cl 8

5шт.

34

339549A1

COIL SPRING

EXTENSION

2шт.

35

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

12шт.

36

87353799

GUIDE

HOOD SIGHT

1шт.

37

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

38

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

8шт.

39

356813A2

BRACKET, SUPPORTING

nut strip

4шт.

40

357893A1

SCREW

BUTTON HEAD

2шт.

41

87344038

PIN

CLEVIS M6 X 20 HTS DOR

1шт.

42

86639114

COTTER PIN,M1.6 x 10

1шт.

43

L106237

SPRING

ACCELERATOR RETURN

1шт.

44

369742A1

SEAL

BULB

1шт.

45

398871A1

SEAL

BULB

2шт.

46

370990A1

SEAL

BULB

1шт.

47

87344040

PIN,8mm OD x 40mm L

CLEVIS M8 X 40 HTS DOR

2шт.

48

87344039

PIN

CLEVIS M8 X 60 HTS DOR

2шт.

49

86639115

COTTER PIN,M2 x 12

4шт.

50

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

51

388554A1

GROMMET

edge

2шт.

52

394002A1

SEAL

BULB

2шт.

53

ZPX27136

SEALANT, THREAD

Adhesive, 271

1шт.
