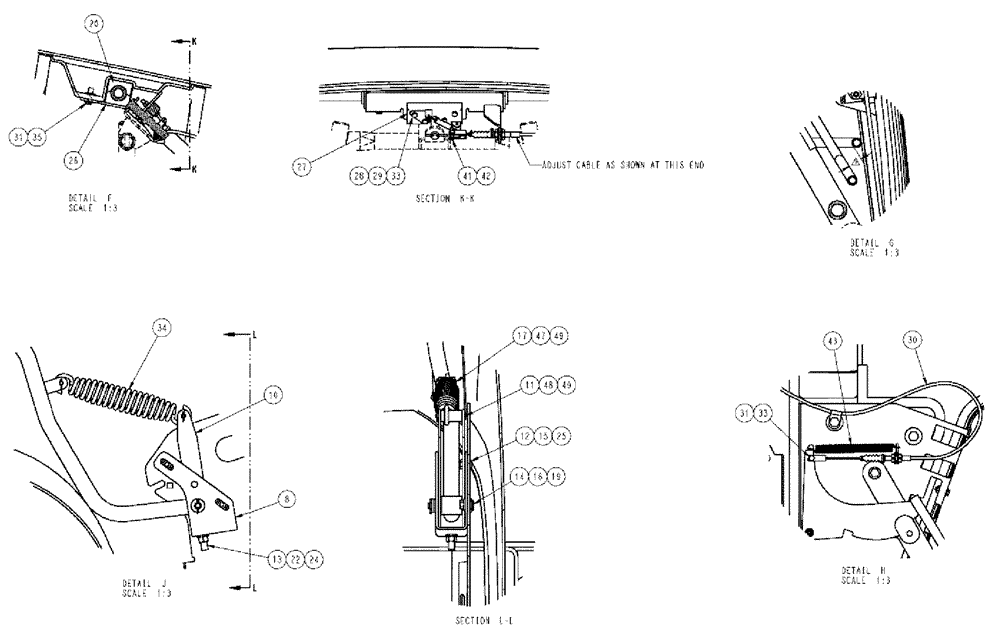

Запчасти Case IH TITAN 4520 (04-021[02]) - HOOD ASSEMBLY, HOOD/GRILLE - BEFORE SERIAL #22152 Frame & Suspension

1

343391A1

HOOD

assembly, with structures

1шт.

2

308943A6

GRILLE

375/440, See Fig. 04-023

1шт.

3

S95569

WASHER

.56 ID HARDENED

6шт.

4

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

5

315197A4

ARM ASSY.

front hood

1шт.

6

339543A2

ARM

rear hood lift

1шт.

7

339537A4

SUPPORT

radiator RH

1шт.

8

339551A1

BRACKET

ADJUSTABLE BASE

2шт.

9

339534A4

SUPPORT

radiator LH

1шт.

10

339547A1

ADJUSTABLE CLEVIS

2шт.

11

313992A1

SPOOL

SPRING

2шт.

12

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

4шт.

13

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

14

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

6шт.

15

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

6шт.

16

86639103

CLEVIS PIN,M12 x 90mm OAL

2шт.

17

320429A1

SPOOL

small spring

2шт.

18

316937A1

SPACER,12.2mm ID x 19.1mm OD x 14mm Thk

hood linkage

2шт.

19

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

20

314842A3

BEARING

SLEEVE

4шт.

21

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

22

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

14шт.

23

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

24

337475

NUT,M12, Cl 10

4шт.

25

86500689

NUT,M10 x 1.5, Cl 10

4шт.

26

445932A1

PLATE

HOOD LATCH

1шт.

Striker Bolt # 86980412 (Not Shown)

1шт.

27

318159A1

LATCH

HOOD

1шт.

28

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

4шт.

29

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

30

443297A1

CABLE,2363mm L

1шт.

31

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

13шт.

32

325525A3

ARM

HOOD SAFETY

1шт.

33

353308

NUT,M6 x 1.0, Cl 8

5шт.

34

339549A1

COIL SPRING

EXTENSION

2шт.

35

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

12шт.

36

87353799

GUIDE

HOOD SIGHT

1шт.

37

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

38

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

8шт.

39

356813A2

BRACKET, SUPPORTING

nut strip

4шт.

40

357893A1

SCREW

BUTTON HEAD

2шт.

41

86639105

CLEVIS PIN,M6 x 20

1шт.

42

86639114

COTTER PIN,M1.6 x 10

1шт.

43

L106237

SPRING

THROTTLE RETURN

1шт.

44

369742A1

SEAL

BULB

1шт.

45

398871A1

SEAL

BULB

2шт.

46

370990A1

SEAL

BULB

1шт.

47

728-840

CLEVIS PIN,M8 x 40

2шт.

48

728-860

CLEVIS PIN,M8 x 60

2шт.

49

86639115

COTTER PIN,M2 x 12

4шт.

50

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

51

388554A1

GROMMET

edge

2шт.

53

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

1шт.

54

394002A1

SEAL

BULB

2шт.

55

ZPX27136

SEALANT, THREAD

Adhesive, 271

1шт.
