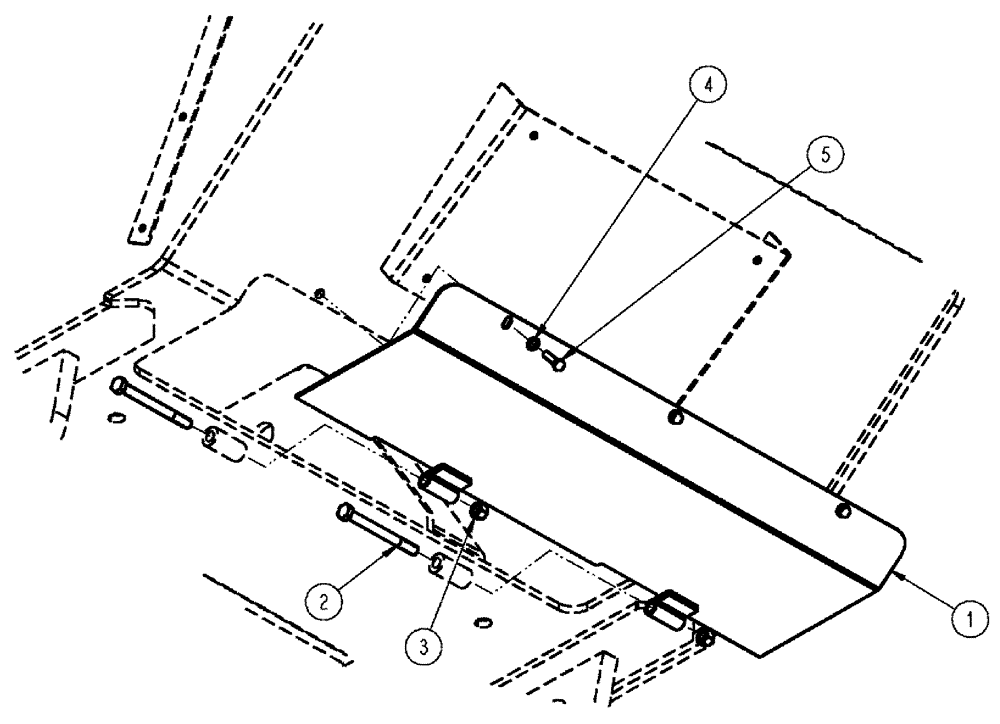

Запчасти Case IH TITAN 4520 (04-020) - ACCESS GROUP, LOWER RADIATOR Frame & Suspension

1

343158A1

PLATE

ACCESS COVER

1шт.

2

309308

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

2шт.

3

100038

NUT,M12 x 1.75, Cl 8

2шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

5

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.
